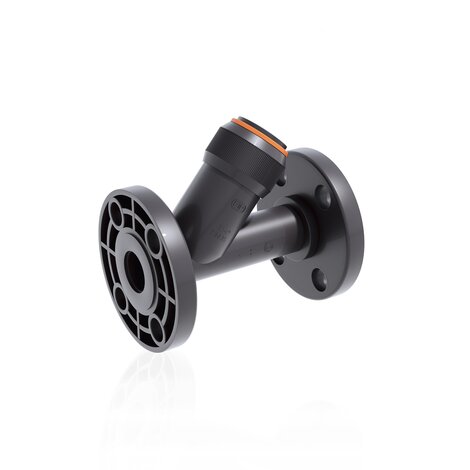

VROV D 20 ÷ 63 - Check valve DN 10:100
Check valve with fixed flanges, drilled PN10/16.
The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only.
EPDM

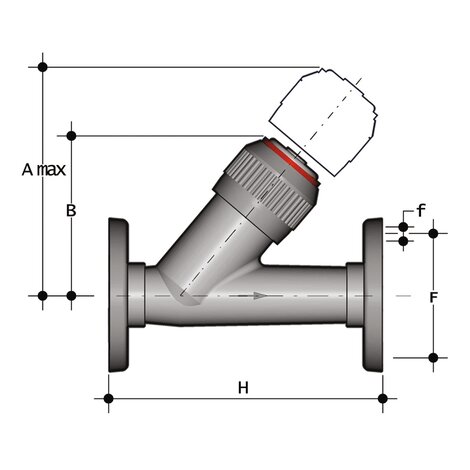

| Reference | H | d | DN | g |
|---|---|---|---|---|
| VROV020E | 130 | 20 | 15 | 280 |
| VROV025E | 150 | 25 | 20 | 430 |
| VROV032E | 160 | 32 | 25 | 640 |
| VROV040E | 180 | 40 | 32 | 1035 |
| VROV050E | 200 | 50 | 40 | 1405 |
| VROV063E | 230 | 63 | 50 | 2235 |
FKM
| Reference | H | d | DN | g |
|---|---|---|---|---|
| VROV020F | 130 | 20 | 15 | 280 |
| VROV025F | 150 | 25 | 20 | 430 |
| VROV032F | 160 | 32 | 25 | 640 |
| VROV040F | 180 | 40 | 32 | 1035 |
| VROV050F | 200 | 50 | 40 | 1405 |
| VROV063F | 230 | 63 | 50 | 2235 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
