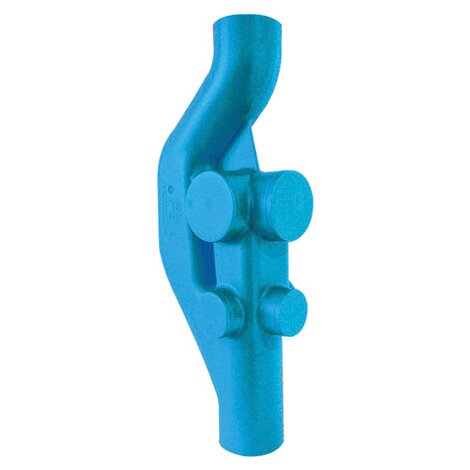

Stack-aerator

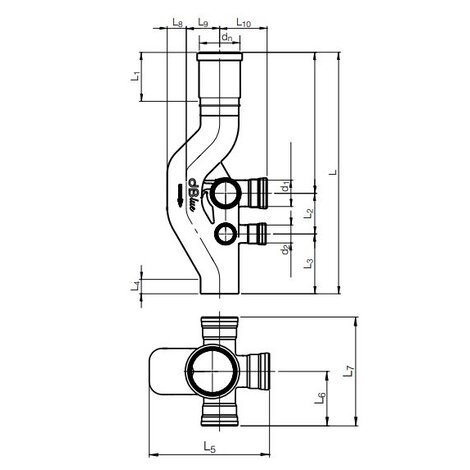

The dBlue stack-aerator is available with 6 possible horizontal branch connections that are closed with a cap. The sockets required for the horizontal connections need to be butt-welded on the stack-aerator. Specify configuration when ordering.

3 x d2 : 110 mm
3 x d3 : 75 mm

Opposite connections are not permitted.

Always use plug-in sockets for the horizontal connections and expansion sockets for the vertical connection on top.

• d1 75 mm - Code VVEN-KIE-075-00D - dBlue plug-in socket (75 mm)
• d1 110 mm - Code VVEN-KIE-110-00D - dBlue plug-in socket (110 mm)
• d1 110 mm - Code VVEN-WLO-110-00D - dBlue expansion socket (110 mm)
• d1 160 mm - Code VVEN-WLO-160-00D - dBlue expansion socket (160 mm)

Inspection openings should be installed according to local regulation. We advise one on every level.
