FRIAMAT prime eco

Fusion unit with documentation function

Powerful universal fusion unit FRIAMAT prime eco

  • Bluetooth
  • Full documentation
  • Full traceability functions
  • 20,000 fusion protocols
  • Output via USB interface or app (smart phone)
  • Supervisor function
  • Toroidal core technology with active cooling.
  • Bright colour TFT display
  • With mini scanner or 1D/2D scanner (2D barcodes according to ISO 12176-5)
  • Extra long fusion cable (4 m)
  • Extra long power cable (5 m)
  • Weight approx. 18.0 kg

Note:

Possibility of updating the FRIAMAT software via the USB interface by the user.

Go back Software Update
Fusion unit with documentation function
Reference Article description Weight kg BX PU
611124 With mini scanner 19,900 1 4
613124 With reader wand 19,900 1 4
614124 With 1D/2D scanner 19,900 1 4

Technical data 1)

FRIAMAT prime eco 2)

Type of device

Universal electrofusion unit with traceability and documentation function and Bluetooth interface

Model with mini scanner

Order no. 611124

Model with reader wand

Order no. 613124

Model with 1D/2D scanner

Order no. 614124

Maximum diameter

Up to d 1200 3)

Input voltage section

AC 190 V – 250 V

Frequency range

44 Hz … 66 Hz

Current consumption

AC 16 A maximum

Power

3.5 kW

Unit fuse

16 A sluggish

Welding tension

8 – 48 V

Output current

maximum 110 A

Welding current monitoring

Short circuit and interruption

Barcode type

1D-Code 2/5 interleaved, Code 128,

2D-Code (QR; Aztec; Data Matrix) according to ISO 12176-5

Interface

USB / Bluetooth® Low Energy V4.2 (CE, FCC, IC certified)

Documentation of fusion data

Yes

Documentation of traceability data

Yes

Data memory

20.000 protocols

Log format

PDF / CSV / FRIATRACE

Manual emergency barcode input

Yes

FRIAMAT preCHECK function

Yes

Software update via USB interface

-

Fusion-Pass

Optional (Order no. 623100)

Supervisor-Pass

Yes

Start/stop pass for remote control

Optional (Order no. 624003)

Working temperature range

-20 °C ... +50 °C

Language variants

23

Connection cable

5 m with contour plug

Fusion cable

4 m with connection plug Ø 4 mm

Weight

approx. 18 kg

Dimensions W x D x H

260 x 500 x 340 mm

Casing

Protection category IP 54 / protection category I

Approval / quality

CE, ISO 9001, WEEE-Reg. no. DE 49130851, RoHS, REACH

Accessories

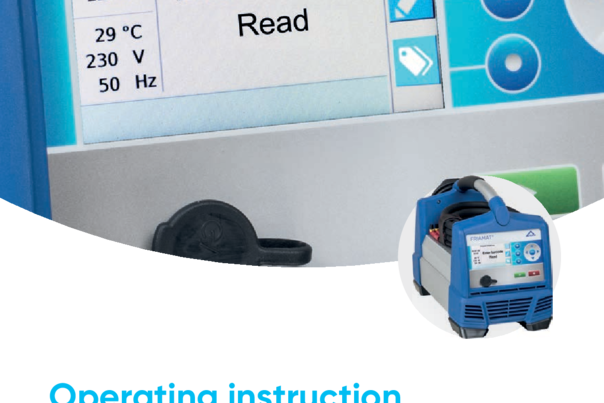

Operating instructions, transport box

1) Subject to technical modifications.

2) From year of construction Q2/2021

3) With the FRIAMAT prime eco, FRIALEN and FRIAFIT safety fittings up to d 900 can be fused in the entire working temperature range of -20 °C +50 °C.

Utilising processing fittings from other manufacturers is possible even up to d 1200 and possibly larger. However, the specific power requirement of the fitting at the prevailing processing temperature must always be clarified beforehand with the fitting manufacturer.

  • High performance due to innovative toroidal transformer technology with flow-optimized, active cooling.
  • High-resolution, extremely bright 4.3 “TFT color display. Documentation of fusion and traceability data. Memory space for up to 20,000 fusion logs. CSV or PDF file or FRIATRACE format output to standard USB stick.
  • With mini-scanner, reader wand or new 1D/2D scanner for reading 2D barcodes according to ISO 12176-5, Adapter bag, language selection, adjustable buzzer volume, manual emergency entry. Extra-long power cable (4 m) and extra-long fusion cable (5 m). Weight approx 18 kg.
  • Continuous monitoring of the entire fusion process and all device functions.
  • With FRIAMAT preCHECK function: The most advanced way to fuse with foresight. The FRIAMAT automatically determines whether the next fusion can be performed completely to the end.
  • The user himself can install software updates via USB interface.
  • Integrated Bluetooth function for communication with the FRIAMAT App. At present, the use of the Bluetooth function is only permitted in the following countries: Australia - Austria - Belgium - Bulgaria - Croatia - Cyprus - Czech Republic - Denmark - Estonia - Finland - France - Germany - Great Britain - Greece - Hungary - Iceland -Israel - Ireland - Italy - Latvia - Liechtenstein - Lithuania - Luxembourg - Malta - the Netherlands - Norway - Poland - Portugal - Romania - Serbi - Slovakia- - Slovenia - Spain - Sweden - Switzerland - New Zealand
