GIM - Elbow

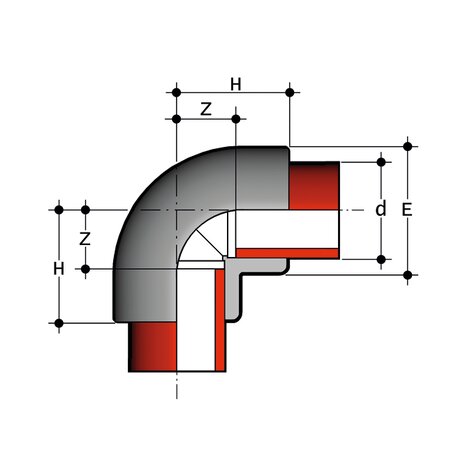

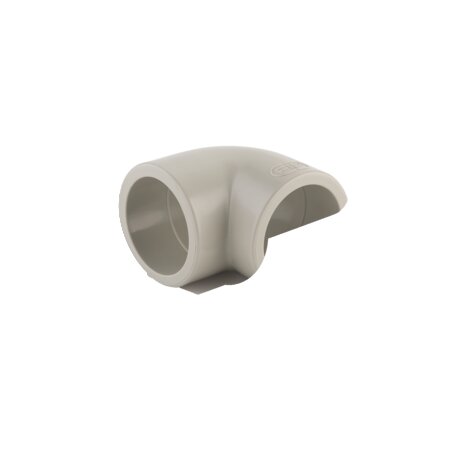

90° elbow for socket welding, equal socket.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| GIM020 | 28 | 13 | 20 | 15 | 14 |
| GIM025 | 32 | 16 | 25 | 20 | 23 |
| GIM032 | 37 | 20 | 32 | 25 | 37 |
| GIM040 | 43 | 22 | 40 | 32 | 64 |
| GIM050 | 51 | 28 | 50 | 40 | 105 |
| GIM063 | 61 | 34 | 63 | 50 | 180 |
| GIM075 | 73 | 42 | 75 | 65 | 300 |
| GIM090 | 85 | 49 | 90 | 80 | 455 |
| GIM110 | 101 | 59 | 110 | 100 | 815 |
