DUAL BLOCK® 2-way ball valve with female ends for socket welding, metric series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back Data sheet

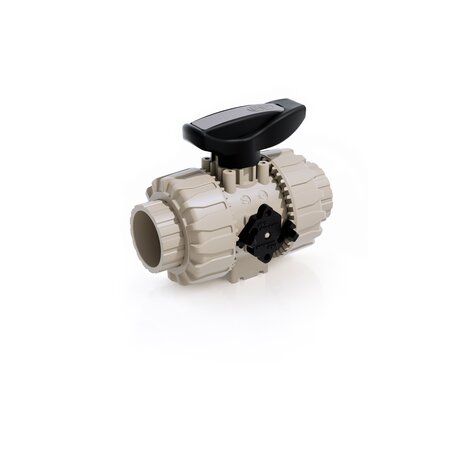

Valvola a sfera a 2 vie DUAL BLOCK® VKDIM DN 10:50 in PP-H
Disegno tecnico VKDIM-VKDIF DN 10:50
Valvola a sfera a 2 vie DUAL BLOCK® VKDIM DN 10:50 in PP-H
Disegno tecnico VKDIM-VKDIF DN 10:50
Reference H Z d DN g
VKDIM016F 102 74,5 16 10 150
VKDIM020F 102 73 20 15 145
VKDIM025F 114 82 25 20 218
VKDIM032F 126 90 32 25 298
VKDIM040F 141 100 40 32 480
VKDIM050F 164 117 50 40 682
VKDIM063F 199 144 63 50 1166
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations

Videos

VKD Dual Block® Ball Valve DN10-50 - EN

Downloads

VKD DN 10:50 PP-H Technical Catalogue
en get_app it get_app
4.5 MB, PDF
VKD DN 10:50 PP-H Technical Catalogue
