DKUIM - DIALOCK® 2-way diaphragm valve DN 15:65

DIALOCK® diaphragm valve with female union ends for socket welding, metric series.

The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Main features:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Go back
Valvola a membrana a 2 vie DIALOCK® DKUIM DN 15:65 in PP-H
DKUIM - DIALOCK® 2-way diaphragm valve DN 15:65
Valvola a membrana a 2 vie DIALOCK® DKUIM DN 15:65 in PP-H
DKUIM - DIALOCK® 2-way diaphragm valve DN 15:65

EPDM

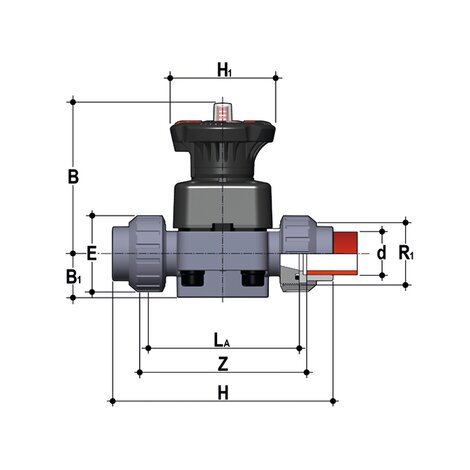

Reference H Z d DN g
DKUIM020E 129 100 20 15 457
DKUIM025E 154 116 25 20 500
DKUIM032E 168 124 32 25 695
DKUIM040E 192 140 40 32 781
DKUIM050E 222 160 50 40 1557
DKUIM063E 266 190 63 50 2293

EPDM

Reference H Z d DN g
DKUIM020E0SF 129 100 20 15 457
DKUIM025E0SF 154 116 25 20 500
DKUIM032E0SF 168 124 32 25 695
DKUIM040E0SF 192 140 40 32 781
DKUIM050E0SF 222 160 50 40 1557
DKUIM063E0SF 266 190 63 50 2293

FKM

Reference H Z d DN g
DKUIM020F 129 100 20 15 457
DKUIM025F 154 116 25 20 500
DKUIM032F 168 124 32 25 695
DKUIM040F 192 140 40 32 781
DKUIM050F 222 160 50 40 1557
DKUIM063F 266 190 63 50 2293

PTFE

Reference H Z d DN g
DKUIM020P 129 100 20 15 457
DKUIM025P 154 116 25 20 500
DKUIM032P 168 124 32 25 695
DKUIM040P 192 140 40 32 781
DKUIM050P 222 160 50 40 1557
DKUIM063P 266 190 63 50 2293

PTFE

Reference H Z d DN g
DKUIM020P0SF 129 100 20 15 457
DKUIM025P0SF 154 116 25 20 500
DKUIM032P0SF 168 124 32 25 695
DKUIM040P0SF 192 140 40 32 781
DKUIM050P0SF 222 160 50 40 1557
DKUIM063P0SF 266 190 63 50 2293
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
    • reduction in the tightening torque of the screws fixing the actuator to the valve body
    • reduced mechanical stress on all valve components (actuator, body and diaphragm)
    • easy to clean valve interior
    • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
    • operating torque reduction
