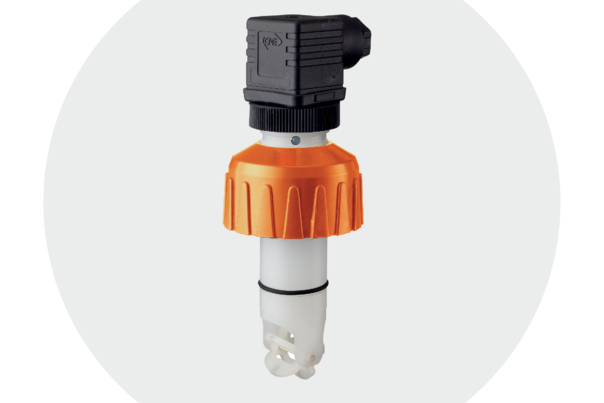

The new FLS F6.50 flowmeter is a rotor-based device and can be used for flow measurement of any type of solids-free liquid.
FLS F6.50 flowmeters provide a 4-20 mA current output and feature a Bluetooth® connection for interaction with the Aliaxis Smart Connect App, which allows the user to set flowmeter configuration and installation parameters and other features.
The design is designed to ensure accurate flow measurement for pipes from DN15 (0.5") to DN600 (24").
Smart Connect App
The new FLS F6.50 series rotor flow transmitter can communicate with the user via Bluetooth® connection and the Smart Connect App.
Smart Connect allows the user to interact with the flow sensor quickly and easily to access instrument settings or for a proximity readout of the information detected during its use.
What are the main features of the Smart Connect App?
- Maximum signal range: 10 mt, even in the presence of obstacles
- Setting of installation parameters: pipe material and size, K-factor
- Protection of access to transmitter settings by user password
- Multilingual interface
- Readout of instantaneous and totaled flow rate and display of current output signal
- Auto calibration of flow rate
- Setting of measurement units, filters and measurement percentage correction
- Setting of flow rate measurement range corresponding to the 4-20mA range
- Simulation of current values for evaluation of output calibration and linearity
- Data logger
The Smart Connect App is compatible with Android and iOS.
APPLICATIONS:
- Water and industrial wastewater treatment
- Water cooling plants
- Swimming pools
- Flow control and monitoring
- Water regeneration plants
- Processing and manufacturing industry
- Water distribution
- Irrigation and agriculture
MAIN FEATURES:
- High chemical resistance
- Pipe size range: DN15 (0.5") to DN600 (24")
- Low pressure drop
- Setting of the functional parameters of the instrument and proximity reading of the information detected during its use via the Aliaxis Smart Connect App
- 4-20 mA signal transmission via cable connection
Bluetooth® Rotor Flow Transmitter FLS F6.50
The new FLS F6.50 flow sensor is a rotor-based device and can be used for flow measurement of any type of solids-free liquid.
The specific design ensures accurate flow measurement for various pipe sizes from DN15 (0.5") to DN600 (24").
