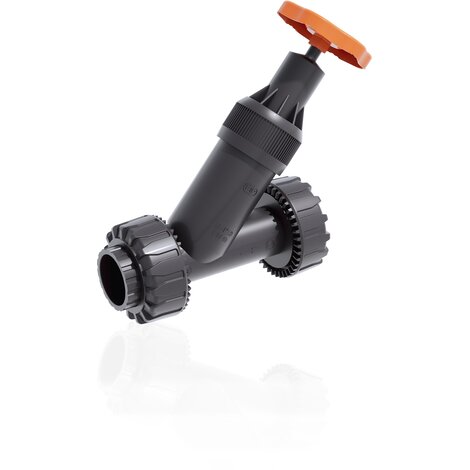

VVUIV - Angle seat valve DN 10:50
Angle seat valve with female union ends for solvent welding, metric series.
The VV angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids.

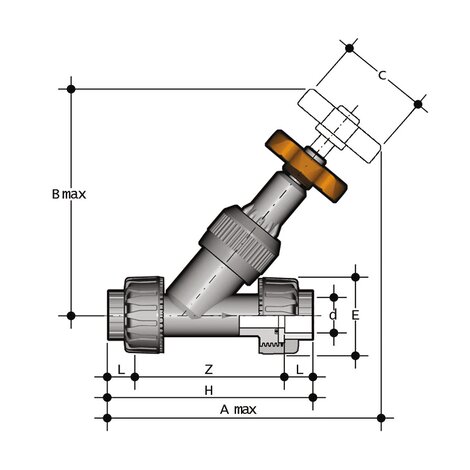

| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| VVUIV016E | 135 | 107 | 16 | 10 | 238 |
| VVUIV020E | 135 | 103 | 20 | 15 | 251 |
| VVUIV025E | 158 | 120 | 25 | 20 | 413 |
| VVUIV032E | 176 | 132 | 32 | 25 | 621 |
| VVUIV040E | 207 | 155 | 40 | 32 | 903 |
| VVUIV050E | 243 | 181 | 50 | 40 | 1320 |
| VVUIV063E | 298 | 222 | 63 | 50 | 2238 |
- Connection system for solvent weld, threaded and flanged joints
- Can be installed in any position
- No metal parts in contact with the fluid
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
