VVUFV - Angle seat valve DN 10:50

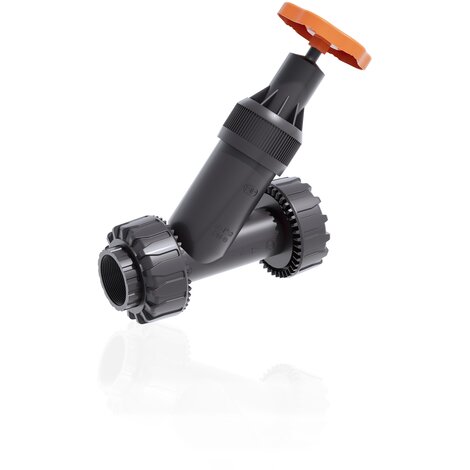

Angle seat valve with BSP threaded female union ends.
The VV angle seat valve is a shutting-off and regulating valve particularly suitable for clean fluids.

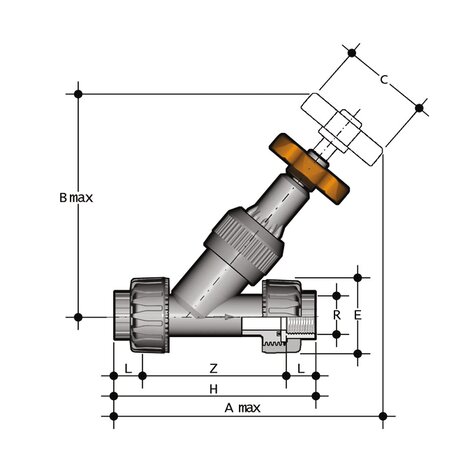

| Reference | H | Z | DN | g |
|---|---|---|---|---|
| VVUFV012E | 143 | 113 | 15 | 251 |
| VVUFV034E | 160 | 127,4 | 20 | 413 |
| VVUFV100E | 183 | 144,8 | 25 | 621 |
| VVUFV114E | 214 | 171,2 | 32 | 903 |
| VVUFV112E | 235 | 192,2 | 40 | 1320 |
| VVUFV200E | 285 | 233,6 | 50 | 2238 |
| VVUFV038E | 135 | 112,2 | 10 | 238 |
- Connection system for solvent weld, threaded and flanged joints
- Can be installed in any position
- No metal parts in contact with the fluid
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- Can be maintained with the valve body installed
