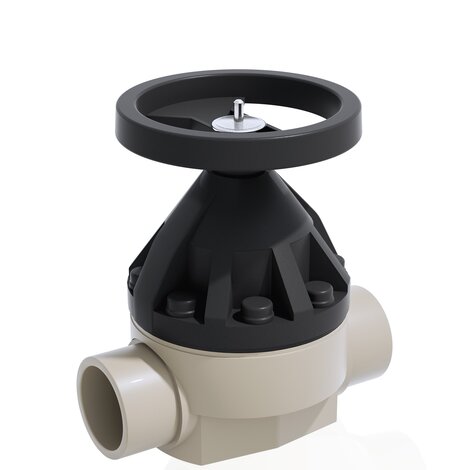

VMDM - Diaphragm valve DN 80:100

Diaphragm valve with male ends for socket welding, metric series.

The VM is particularly suitable for shutting off and regulating abrasive or dirty fluids. The handwheel control and diaphragm seal provide precise and effective control, while reducing the risk of water hammer to a minimum.

Main features:

Handwheel in (PA-GR) with high mechanical strength and ergonomic grip for optimum manageability
Metal optical position indicator supplied as standard
Full protection bonnet in PP-GR Internal circular and symmetrical diaphragm sealing area
Diaphragm available in EPDM, FPM, PTFE (NBR on request) and easy to replace
Threaded metal inserts for anchoring the valve
New valve body internal design: substantially higher flow coefficient resulting in lower pressure drops. Optimised adjustment curve for effective and precise flow rate regulation

Go back

EPDM

Reference	H	d	DN	g
VMDM090E	300	90	80	6040
VMDM110E	340	110	100	9160

FKM

Reference	H	d	DN	g
VMDM090F	300	90	80	6040
VMDM110F	340	110	100	9160

PTFE

Reference	H	d	DN	g
VMDM090P	300	90	80	6040
VMDM110P	340	110	100	9160

Connection system for solvent welding and for flanged joints
Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
Handwheel that stays at the same height during rotation, with internal bearing to minimise friction and operating torque
Standard optical indicator
Internal operating components in metal totally isolated from the conveyed fluid
Bonnet fastening screws in STAINLESS steel protected against the external environment by PE plugs
New flanged bodies: the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free from body and flange joints, greatly reduces mechanical stress and increases system performance

1.9 MB, PDF

VM Technical Catalogue
