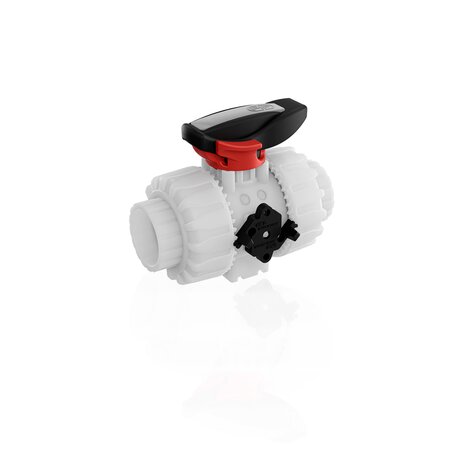

VKDIF/SHX - DUAL BLOCK® 2-way ball valve DN 10:50

DUAL BLOCK® 2-way ball valve with handle lock and STAINLESS steel threaded inserts for fastening, with female ends for butt welding, metric series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back
Valvola a sfera a 2 vie DUAL BLOCK® VKDIF/SHX DN 10:50 in PVDF
Disegno tecnico VKDIM/SHX-VKDIF/SHX DN 10:50
Valvola a sfera a 2 vie DUAL BLOCK® VKDIF/SHX DN 10:50 in PVDF
Disegno tecnico VKDIM/SHX-VKDIF/SHX DN 10:50
Reference H Z d DN g
VKDIFSHX016F 102 74,5 16 10 291
VKDIFSHX020F 102 73 20 15 272
VKDIFSHX025F 114 82 25 20 445
VKDIFSHX032F 126 90 32 25 584
VKDIFSHX040F 141 100 40 32 938
VKDIFSHX050F 164 117 50 40 1242
VKDIFSHX063F 199 144 63 50 2187
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
