VKDDC - DUAL BLOCK® 2-way ball valve DN 65:100

DUAL BLOCK® 2-way ball valve with male ends for solvent welding, metric series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. This valve is also equipped with a customisable Labelling System.

Main features:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back

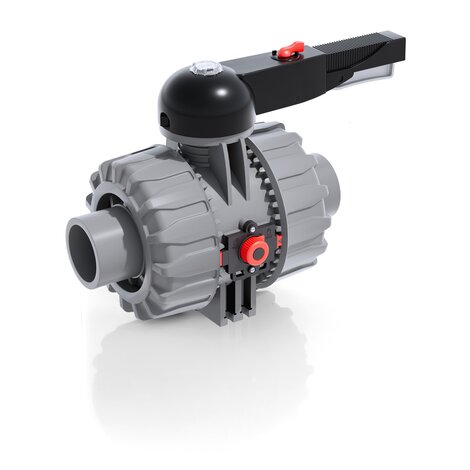

Render della valvola a sfera a 2 vie DUAL BLOCK® VKDDC - DN 65:100 in PVC-C
Disegno tecnico VKDDM DN 65:100
Render della valvola a sfera a 2 vie DUAL BLOCK® VKDDC - DN 65:100 in PVC-C
Disegno tecnico VKDDM DN 65:100

EPDM

Reference H d DN g
VKDDC075E 235 75 65 4789
VKDDC090E 270 90 80 7691
VKDDC110E 308 110 100 11931

FKM

Reference H d DN g
VKDDC075F 235 75 65 4789
VKDDC090F 270 90 80 7691
VKDDC110F 308 110 100 11931
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
