VKDDC - DUAL BLOCK® 2-way ball valve DN 10:50

DUAL BLOCK® 2-way ball valve with male ends for solvent welding, metric series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back

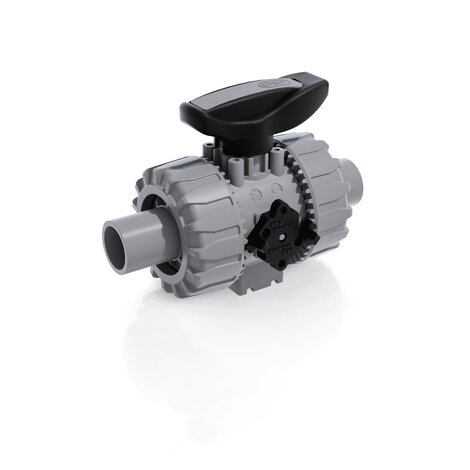

Render della valvola a sfera a due vie DUAL BLOCK® VKDDC - DN 10:50 in PVC-C
Disegno tecnico VKDDM DN 10:50
Render della valvola a sfera a due vie DUAL BLOCK® VKDDC - DN 10:50 in PVC-C
Disegno tecnico VKDDM DN 10:50

EPDM

Reference H d DN g
VKDDC020E 124 20 15 239
VKDDC025E 144 25 20 369
VKDDC032E 154 32 25 482
VKDDC040E 174 40 32 753
VKDDC050E 194 50 40 1029
VKDDC063E 224 63 50 1749

FKM

Reference H d DN g
VKDDC020F 124 20 15 239
VKDDC025F 144 25 20 369
VKDDC032F 154 32 25 482
VKDDC040F 174 40 32 753
VKDDC050F 194 50 40 1029
VKDDC063F 224 63 50 1749
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
