VKDAC - DUAL BLOCK® 2-way ball valve DN 10:50

DUAL BLOCK® 2-way ball valve with female ends for solvent welding, ASTM series.

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Go back

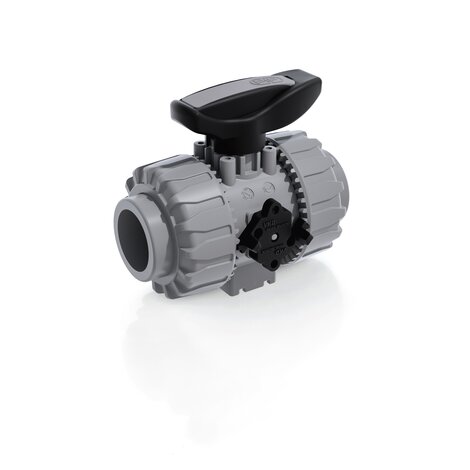

Render della valvola a sfera a due vie DUAL BLOCK® VKDAC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50
Render della valvola a sfera a due vie DUAL BLOCK® VKDAC - DN 10:50 in PVC-C
Disegno tecnico della valvola a sfera VKDI, VKDL, VKDA, VKDJ DN 10:50

EPDM

Reference H Z d DN g
VKDAC012E 117 72 1/2” 15 234
VKDAC034E 129 78 3/4” 20 375
VKDAC100E 142 84,6 1” 25 487
VKDAC114E 162 98 1” 1/4 32 780
VKDAC112E 172 102 1” 1/2 40 1062
VKDAC200E 199 122,6 2” 50 1864

FKM

Reference H Z d DN g
VKDAC012F 117 72 1/2” 15 237
VKDAC034F 129 78 3/4” 20 375
VKDAC100F 142 84,6 1” 25 487
VKDAC114F 162 98 1” 1/4 32 780
VKDAC112F 172 102 1” 1/2 40 1062
VKDAC200F 199 122,6 2” 50 1864
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
