ATSR 45

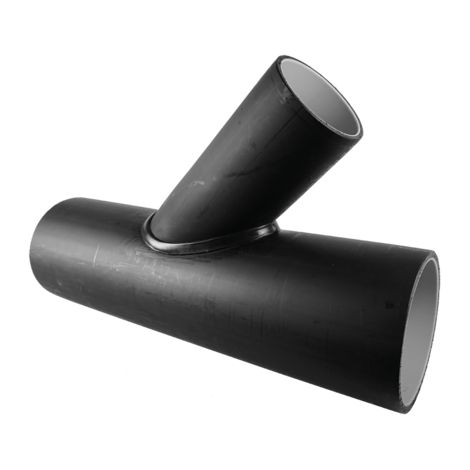

Unequal branch 45° (spigot fitting)
Unequal branch with reduced outlet 45°, SDR 17 (spigot fitting) ATSR 45
- HD-PE fitting for processing without holding devices with FRIAFIT couplers AM
- Black pipe colour with bright inner surface
PE 100
Maximum permissible test pressure 0.5 bar according to DIN EN 1610

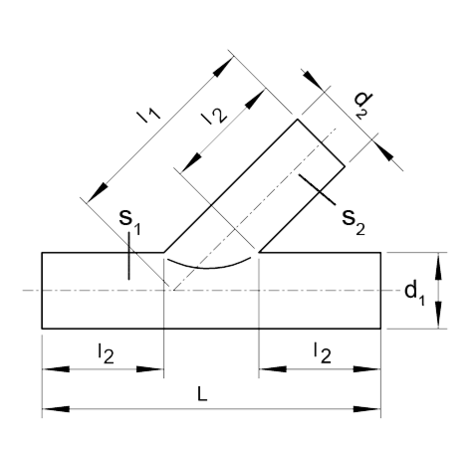

| Reference | d1 | d2 | l1 | l2 | s1 | product.detail.attribute.s1_klein | s2 | Weight [kg] | BX |
|---|---|---|---|---|---|---|---|---|---|
| 682203 | 225 | 160 | 489 | 250 | 13,4 | 13,4 | 9,5 | 7,500 | 1 |
| 682204 | 280 | 160 | 578 | 300 | 16,6 | 16,6 | 9,5 | 12,000 | 1 |
| 682205 | 280 | 225 | 610 | 300 | 16,6 | 16,6 | 13,4 | 15,600 | 1 |
| 682206 | 315 | 160 | 653 | 350 | 18,7 | 18,7 | 9,5 | 16,600 | 1 |
| 682207 | 315 | 225 | 685 | 350 | 18,7 | 18,7 | 13,4 | 19,600 | 1 |
| 682208 | 355 | 160 | 681 | 350 | 21,1 | 21,1 | 9,5 | 19,600 | 1 |
| 682209 | 355 | 225 | 714 | 350 | 21,1 | 21,1 | 13,4 | 28,500 | 1 |
| 682210 | 450 | 160 | 748 | 350 | 26,7 | 26,7 | 9,5 | 29,100 | 1 |
