ULF0X.X.X
Ultra Low Flow Sensors

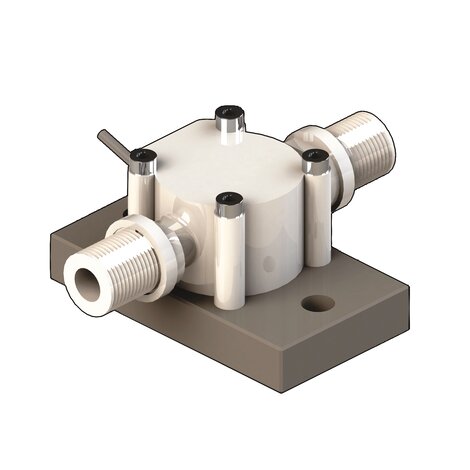

FLS compact Ultra Low Flow sensors ULF have been for use with every kind of aggressive and solid-free liquids. The sensor can be fixed to flexible or rigid pipes via 1/4” GAS threaded process connections. The paddlewheel sensor produces a frequency output proportional to the flow velocity that can be easily transmitted and processed. The ULF sensor offers two different flow ranges starting from 1.5 or 6 l/h (0.0066 or 0.0264 gpm). The construction materials, POM or ECTFE (Halar®), provide high strength and chemical resistance.
| Reference |
|---|
| ULF01.H.0 |
| ULF01.H.2 |
| ULF01.H.3 |
| ULF01.R.0 |
| ULF01.R.2 |
| ULF01.R.3 |
| ULF03.H.0 |
| ULF03.H.2 |
| ULF03.H.3 |
| ULF03.R.0 |
| ULF03.R.2 |
| ULF03.R.3 |
APPLICATIONS:
- Water treatment
- Chemical industry
- Pharmaceutical industry
- Dosing systems
- Laboratory plants
MAIN FEATURES:
- POM or ECTFE (Halar®) wetted parts
- Two flow ranges available: - 1.5 - 100 l/h (0.0066 - 0.44 gpm) - 6 - 250 l/h (0.0264 - 1.1 gpm)
- High chemical resistance
- Easy mounting
