Transition fitting in HD-PE/brass with male thread
Brass pipe transition fitting MUN
- Water
- Working pressure: PFA (water) 16 bar
- Material: PE 100 and brass (EN 12168 - CW617N, thread according to EN 10226-1)
- Safety technology
Note:
The brass side is anchored as non-detachable and non-rotatable in PE.
Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas.
Default: Brass, gunmetal on request.
Other thread dimensions available on request.
PE 100 SDR 11
Maximum permissible working pressure 16 bar (water)

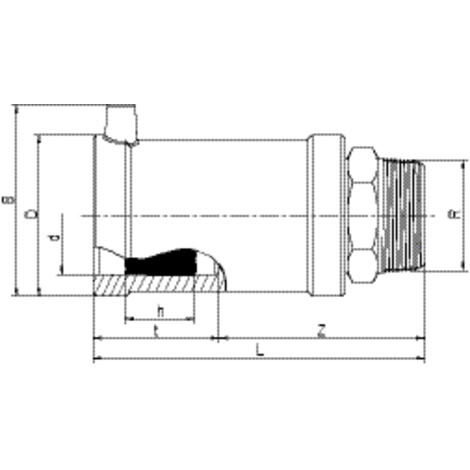

| Reference | d | R | B | D | h | L | t | z | Weight kg | BX | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 612712 | 32 | 1" | 61 | 47 | 24 | 112 | 42 | 70 | 0,320 | 20 | 1440 |
| 612709 | 32 | 1 1/4" | 61 | 47 | 24 | 120 | 42 | 70 | 0,400 | 20 | 1080 |
| 612698 | 32 | 1 1/2" | 61 | 47 | 24 | 121 | 42 | 70 | 0,450 | 15 | 810 |
| 612721 | 40 | 1" | 70 | 58 | 30 | 123 | 46 | 75 | 0,460 | 20 | 800 |
| 612713 | 40 | 1 1/4" | 70 | 58 | 30 | 126 | 46 | 77 | 0,490 | 20 | 800 |
| 612718 | 40 | 1 1/2" | 70 | 58 | 30 | 127 | 46 | 78 | 0,520 | 20 | 800 |
| 612725 | 40 | 2" | 70 | 58 | 30 | 132 | 46 | 86 | 0,680 | 20 | 600 |
| 612719 | 50 | 1" | 80 | 70 | 30 | 134 | 53 | 81 | 0,620 | 15 | 600 |
| 612716 | 50 | 1 1/4" | 80 | 70 | 30 | 136 | 53 | 83 | 0,620 | 15 | 600 |
| 612714 | 50 | 1 1/2" | 80 | 70 | 30 | 137 | 53 | 84 | 0,620 | 15 | 600 |
| 612706 | 50 | 2" | 80 | 70 | 30 | 147 | 53 | 94 | 0,760 | 15 | 600 |
| 612722 | 63 | 1 1/4" | 94 | 84 | 35 | 138 | 53 | 84 | 0,920 | 10 | 400 |
| 612717 | 63 | 1 1/2" | 94 | 84 | 35 | 137 | 53 | 84 | 0,910 | 10 | 400 |
| 612715 | 63 | 2" | 94 | 84 | 35 | 142 | 53 | 89 | 0,920 | 10 | 400 |
Other thread dimensions on request
FRIALEN safety fittings can be fused with SDR11 - SDR17.6 pipes, minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test marks issued: DV-7501AU2256 and DV-7501AU2257
Areas of Application
FRIALEN-Transition Fittings MUN are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler.
Assembly Instructions
The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The installation of the brass and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends.
Good reasons for using the FRIALEN-Transition Fittings MUN:
- Compact construction
- HD-PE side with exposed heating element for optimal heat transfer
- Cold zones at the end to prevent the flow of molten material
- No holding clamps required
- Large insertion depth, extra wide fusion zones
- Brass end permanently anchored in the HD-PE and will not distort
- Self sealing patented sealing geometry without elastomer seal
- Additional barcode for tracing back the fitting (Traceability-Coding)
