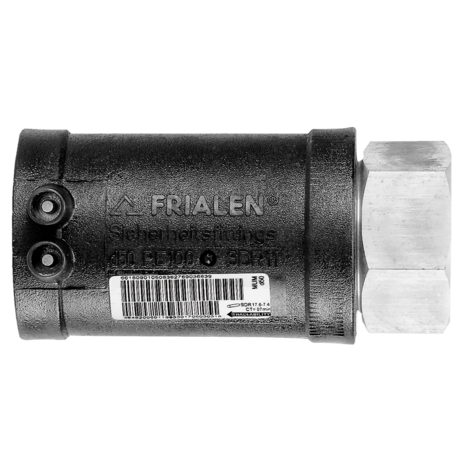

Transition fitting HD-PE/gunmetal with female thread

Transition fitting gunmetal pipe MUM

Water
Working pressure: PFA (water) 16 bar
Material: PE 100 and gunmetal (EN 1982 - CC499K-GC, thread to EN 10226-1)
Safety technology

Note:

Gunmetal side is anchored non-detachable and non-rotatable in the PE.

Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas.

Default: Gunmetal, V2A on request.

Other thread dimensions available on request.

Go back

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water)

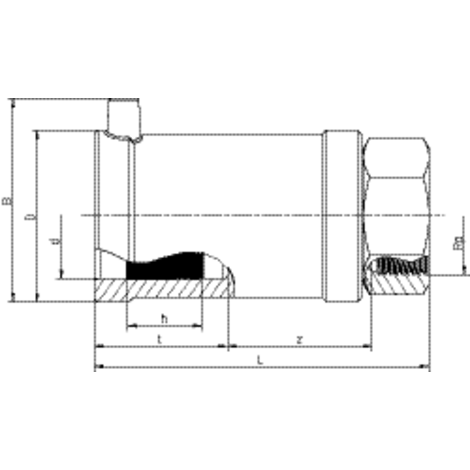

Reference	d	Rp	B	D	h	L	t	z	Weight kg	BX	PU
612595	32	1"	61	47	24	112	42	49	0,360	20	1080
612596	40	1 1/4"	70	58	30	121	46	53	0,530	20	800
612692	50	1 1/2"	80	70	30	136	53	60	0,650	15	600
612708	63	1 1/2"	94	84	35	141	53	61	1,100	10	300
612693	63	2"	94	84	35	141	53	61	1,080	10	400

Other thread dimensions on request

FRIALEN safety fittings can be fused with SDR11 - SDR17.6 pipes, minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test mark issued: DV-7501AU2256

Areas of Application

FRIALEN-Transition Fittings MUM are threaded joints as an adaptor from a metal pipe with external thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler.

Assembly Instructions

The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The installation of the gunmetal and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends.

Good reasons for using the FRIALEN-Transition Fittings MUM:
