TKDIM - DUAL BLOCK® 3-way ball valve DN 15:50

DUAL BLOCK® 3-way ball valve with metric plain socket ends for socket welding, - T bore.

FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications.

Main features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier. Possibility of installing the LTKD stroke limiter (available as an accessory) that permits ball and handle rotation only for set opening and closing angles at 90° or 180°
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
  • 4 PTFE ball seat system that compensates axial force guaranteeing optimal manageability and long working life
Go back
Valvola a sfera a 3 vie DUAL BLOCK® TKDIM DN 15:50 in PP-H
TKDIM - DUAL BLOCK® 3-way ball valve DN 15:50
Valvola a sfera a 3 vie DUAL BLOCK® TKDIM DN 15:50 in PP-H
TKDIM - DUAL BLOCK® 3-way ball valve DN 15:50

EPDM

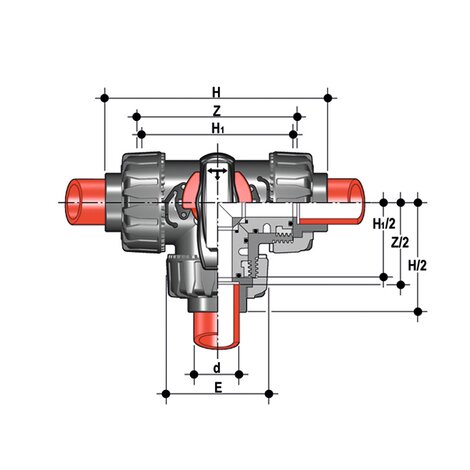

Reference H Z d DN g
TKDIM020E 117 88 20 15 195
TKDIM025E 144 112 25 20 350
TKDIM032E 158 122 32 25 505
TKDIM040E 184 143 40 32 820
TKDIM050E 219 172 50 40 1070
TKDIM063E 267 212 63 50 1795

EPDM

Reference H Z d DN g
TKDIM020E0LF 117 88 20 15 195
TKDIM025E0LF 144 112 25 20 350
TKDIM032E0LF 158 122 32 25 505
TKDIM040E0LF 184 143 40 32 820
TKDIM050E0LF 219 172 50 40 1070
TKDIM063E0LF 267 212 63 50 1795

EPDM

Reference H Z d DN g
TKDIM020E0SF 117 88 20 15 195
TKDIM025E0SF 144 112 25 20 350
TKDIM032E0SF 158 122 32 25 505
TKDIM040E0SF 184 143 40 32 820
TKDIM050E0SF 219 172 50 40 1070
TKDIM063E0SF 267 212 63 50 1795

FKM

Reference H Z d DN g
TKDIM020F 117 88 20 15 195
TKDIM025F 144 112 25 20 350
TKDIM032F 158 122 32 25 505
TKDIM040F 184 143 40 32 820
TKDIM050F 219 172 50 40 1070
TKDIM063F 267 212 63 50 1795

FKM

Reference H Z d DN g
TKDIM020F0LF 117 88 20 15 195
TKDIM025F0LF 144 112 25 20 350
TKDIM032F0LF 158 122 32 25 505
TKDIM040F0LF 184 143 40 32 820
TKDIM050F0LF 219 172 50 40 1070
TKDIM063F0LF 267 212 63 50 1795

FKM

Reference H Z d DN g
TKDIM020F0SF 117 88 20 15 195
TKDIM025F0SF 144 112 25 20 350
TKDIM032F0SF 158 122 32 25 505
TKDIM040F0SF 184 143 40 32 820
TKDIM050F0SF 219 172 50 40 1070
TKDIM063F0SF 267 212 63 50 1795
  • Connection system for weld and threaded joints
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • PN10 True Union valve body made for PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double groove ball connection, equipped with optical position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust integrated bracket for valve anchoring for easy and quick automation using the Power Quick module (optional)
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
