TIF
Adaptor for socket welding - equal socket.

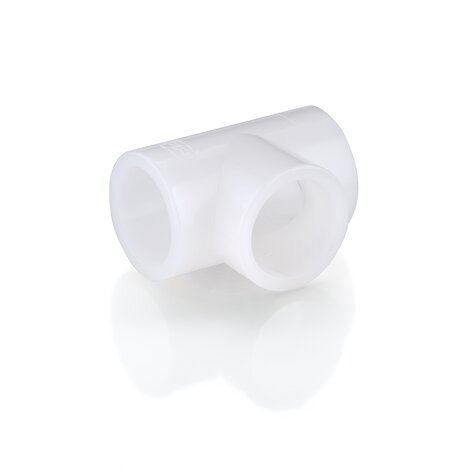

90° Tee for socket welding.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Reference | H | Z | d | g |
|---|---|---|---|---|
| TIF016 | 23 | 10 | 16 | 18 |
| TIF020 | 27 | 13 | 20 | 35 |
| TIF025 | 32 | 16 | 25 | 55 |
| TIF032 | 37 | 19 | 32 | 90 |
| TIF040 | 43 | 22 | 40 | 150 |
| TIF050 | 52 | 29 | 50 | 270 |
| TIF063 | 63 | 35 | 63 | 470 |
| TIF075 | 71 | 40 | 75 | 665 |
| TIF090 | 82 | 46 | 90 | 1025 |
| TIF110 | 99 | 58 | 110 | 1800 |
