TIC
Solvent weld fittings - equal socket.

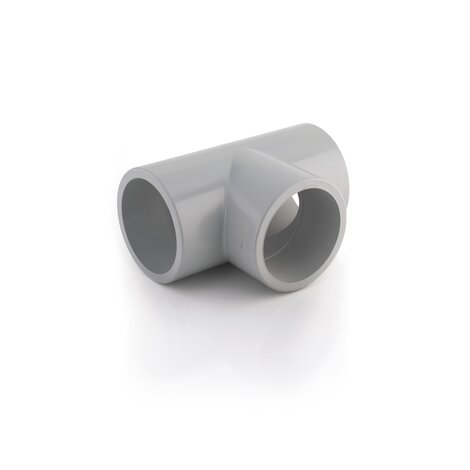

90° Tee with solvent weld sockets.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | Z | d | g |
|---|---|---|---|
| TIC016 | 9 | 16 | 15 |
| TIC020 | 11 | 20 | 25 |
| TIC025 | 14 | 25 | 45 |
| TIC032 | 17,5 | 32 | 75 |
| TIC040 | 22 | 40 | 125 |
| TIC050 | 27 | 50 | 195 |
| TIC063 | 33,5 | 63 | 394 |
| TIC075 | 38,5 | 75 | 667 |
| TIC090 | 48 | 90 | 1075 |
| TIC110 | 61 | 110 | 1920 |
| TIC160 | 89 | 160 | 5730 |
| TIC225 | 114 | 225 | 10800 |
