TBM PN6 SDR 17,6 - 8,3 - Fittings equal ends

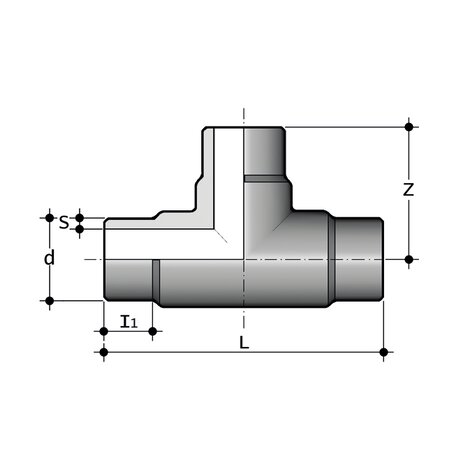

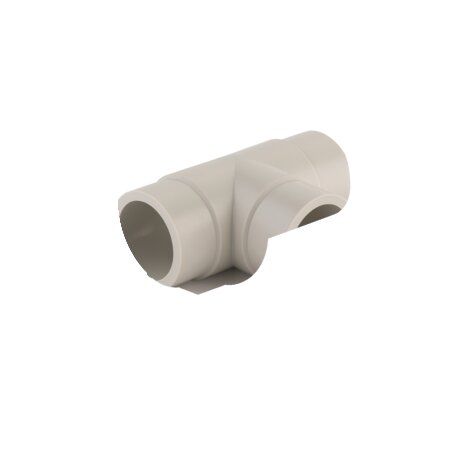

90° Tee, short spigot for butt welding PN6 SDR 17,6 - S 8,3.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Reference | Z | d | g |
|---|---|---|---|
| TBM17050 | 62 | 50 | 80 |
| TBM17063 | 78 | 63 | 175 |
| TBM17075 | 90 | 75 | 295 |
| TBM17090 | 100 | *90 | 480 |
| TBM17110 | 120 | *110 | 790 |
| TBM17125 | 125 | *125 | 1150 |
| TBM17140 | 140 | *140 | 1455 |
| TBM17160 | 160 | *160 | 2170 |
| TBM17180 | 195 | *180 | 3315 |
| TBM17200 | 215 | *200 | 4600 |
| TBM17225 | 245 | *225 | 6530 |
| TBM17250 | 275 | *250 | 8145 |
| TBM17280 | 310 | *280 | 13000 |
| TBM17315 | 350 | *315 | 18375 |
| TBM17355 | 345 | *355 | 21900 |
| TBM17400 | 367 | *400 | 26300 |
| TBM17450 | 419 | *450 | 42715 |
| TBM17500 | 477 | *500 | 59500 |
*resale products
