DAV ACW

Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)

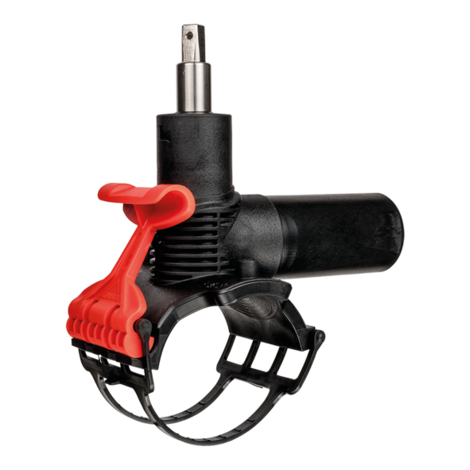

Tapping valve DAV RED SNAP ACW, SDR 11

Gas, water and H2
Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
Material: PE 100
Quick release mechanism (RED SNAP):
- Simple and error-free assembly
- More quality and high security
- Save 50% of installation time
Integrated drill with upper and lower inner stop
Maximum 9 turns for opening and closing
Safety technology
DVGW test mark: DV-6611AU2255

Note:

For this purpose, there is a suitable actuating linkage DBS with KlickFix and foam rubber for wrench size SW14.

The output nominal size 63 / 40 is a solution with reducing socket MR.

Go back

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

Reference	d₁	d₂	B1	L	t₂	z₁	z₂	z₃	Drilling Ø d_a	Turns open/close	Weight kg	BX	PU
617127	50	32	95	177	86	56	125	8	30	7	1,210	24	192
617128	63	32	108	177	86	63	125	10	30	7	1,210	24	192
617129	63	63	108	177	115	63	155	10	30	7	1,330	20	160
617130	75	32	120	177	86	69	125	10	30	7	1,040	20	160
617131	90	32	137	183	86	76	125	10	30	8	1,210	12	96
617132	90	63	137	183	115	76	165	10	30	8	1,330	12	96
617133	110	32	152	183	86	86	125	10	30	8	1,230	12	96
617134	110	63	152	183	115	86	170	10	30	8	1,360	12	96
617135	125	32	167	183	86	94	125	10	30	8	1,260	12	96
617136	125	63	167	183	115	94	170	10	30	8	1,380	12	96
617137	140	32	170	183	86	101	125	10	30	8	1,230	12	96
617138	140	63	170	183	115	101	175	10	30	8	1,360	12	96
617139	160	32	195	208	86	111	130	10	30	9	1,410	10	80
617140	160	63	195	208	115	111	180	10	30	9	1,550	10	80
617141	180	32	203	208	86	121	130	10	30	9	1,440	10	80
617142	180	63	203	208	115	121	180	10	30	9	1,570	10	80
617143	200	32	205	208	86	131	130	10	30	9	1,440	8	64
617144	200	63	205	208	115	131	185	10	30	9	1,590	8	64
617145	225	32	214	208	86	144	135	10	30	9	1,470	8	64
617146	225	63	214	208	115	144	190	10	30	9	1,620	8	64

FRIALEN pressure tapping valves ≤ d 63 are applicable for pipes of SDR level 11 and > d 63 for pipes of SDR level 11 to 17.6. Minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test mark issued: DV-6611AU2255.

Areas of Application DAV ACW RED SNAP

The FRIALEN-Pressure Tapping Valves DAV ACW RED SNAP (closing in an anti-clockwise direction) are used for branches of unpressurised and pressurised gas and water pipelines. Outlet spigots are prepared for integration of excess flow valves.

Assembly Instructions

The fusion of the HD-PE distribution pipes and the service pipes with FRIALEN-Pressure Tapping Valves takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The saddle and the outlet spigot have to be prepared according to the general assembly instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house service and supply pipes up to d 225”). This involves removing the oxide layer and cleaning the pipe surface covered by the saddle as well as the outlet spigot and the pipe end.

The assembly of the pressure tapping valve with fast clamping mechanism takes place within seconds with the fast clamping lever RED SNAP without additional tools.

For „Open/Close” the pressure tapping valve require 8 to 9 turns, depending to the dimension and design, by using an operating key type E according to DIN 3223.

(The tapping process need less turns, because of the intermediate position of the drill in supplied condition).

Good reasons for using the FRIALEN Pressure Tapping Valves DAV ACW with fast clamping lever RED SNAP:

Compact part, solid injection molded body made from HD-PE

Simple and reliable assembly without any tool, thanks to the patented fast clamping lever RED SNAP

The flexible saddle compensates pipe tolerances and provides always an optimal, uniform buildup of melt pressure during the fusion

Fusing and tapping of the main under maximum permitted operating pressure gas/water

Simple start-up of the pressure tapping valve because of little tapping forces

No preventive measures necessary with regard to corrosion

Actuating spindle made from corrosion-resistant steel

Swarfless tapping due to rotating punching drill made of stainless steel

Punched-out pipe piece fits securely and permanent in the drill

Drill with solid upper and lower stop

Length of outlet spigot dimensioned for two fusion operations

Barcode exposed on fast clamping lever RED SNAP for easy scanning with readerwand or barcode scanner

Installation set DBS is continuously telescopic and self supported in any extended position

Installation set with a sleeve tube bell with integrated locking function: connects the installation kit firmly to the DAV, unintentional release is prevented
