TA RED SDR 11

T-piece with reduced spigot, SDR 11

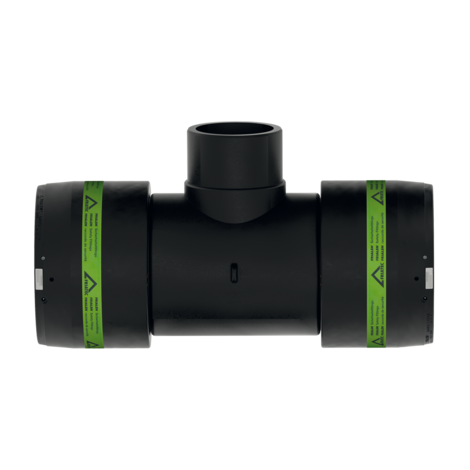

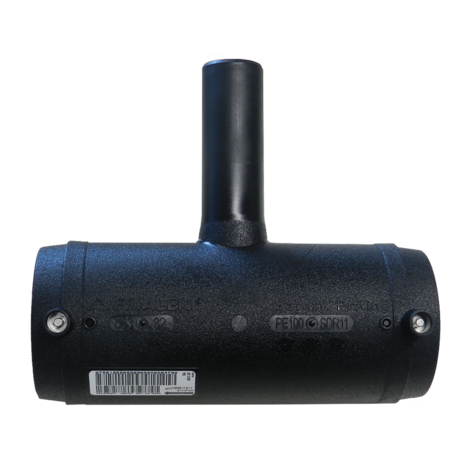

T-piece TA RED SDR 11 with reduced spigot

Gas, water and H2
Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
Material: PE 100
Reduced spigots
Safety technology
DVGW test mark: DV-8601AU2248, DV-8606AU2249 and DV-8611AU2250

Go back

With long outlet spigot

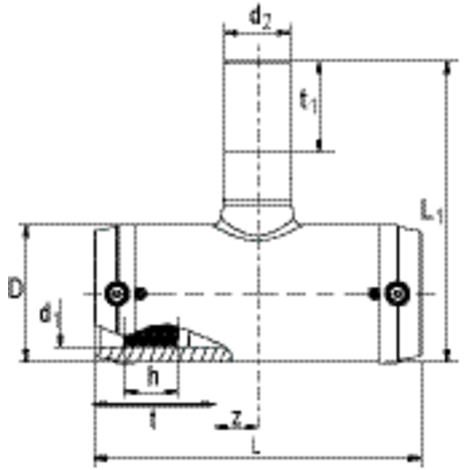

Reference	d₁	d₂	SDR range	B	D	h	L	L1	t	t₁	z	Weight kg	BX	PU
616417	32	20	11	62	46	22	116	117	44	42	14	0,110	30	540
616418	40	32	11	70	55	25	146	148	46	51	28	0,170	20	360
616419	50	32	17,6 - 11	82	69	28	175	158	55	51	33	0,300	15	270
616420	50	40	17,6 - 11	82	69	28	175	167	55	55	33	0,320	15	270
616421	63	32	17,6 - 11	96	84	32	197	173	63	51	36	0,440	10	180
616422	63	40	17,6 - 11	96	84	32	197	182	63	55	36	0,450	10	180
616423	63	50	17,6 - 11	96	84	32	197	197	63	60	36	0,500	10	180

With standard outlet spigots

	Reference	d₁	d₂	SDR range	B	D	h	L	L1	t	t₁	z	Weight kg	BX	PU
	616675	90	32	17,6 - 11	126	116	43	280	172	79	44	61	1,050	10	80
	616676	90	63	17,6 - 11	126	116	43	280	191	79	63	61	1,100	10	80
	616678	110	63	17,6 - 11	148	141	48	310	216	82	63	73	1,700	8	64
	616679	110	90	17,6 - 11	148	141	48	310	244	82	79	73	1,850	8	64
	616681	160	90	17,6 - 11	205	203	45	390	305	98	79	97	4,400	3	24
	616682	160	110	17,6 - 11	205	203	45	390	308	98	82	97	4,500	3	24
	616683	160	125	17,6 - 11	205	203	45	390	313	98	87	97	4,600	3	24
	617174	180	125	17,6 - 11	228	223	49,9	495	357	105	87	143	7,160	2	16
¹	617176	200	90	17,6 - 11	250	247	50,3	540	360	112	79	158	8,410	1	8
¹	617177	200	110	17,6 - 11	250	247	50,3	540	370	112	82	158	8,890	1	8
¹	617178	200	160	17,6 - 11	250	247	50,3	540	401	112	98	158	9,900	1	8
¹	617180	225	90	17,6 - 11	281	278	61,2	590	389	120	79	175	11,550	1	8
¹	617181	225	110	17,6 - 11	281	278	61,2	590	399	120	82	175	12,200	1	8
¹	617182	225	160	17,6 - 11	281	278	61,2	590	430	120	98	175	13,370	1	8
	616427	250	225	17,6 - 11	-	310	80	770	440	128	-	254	21,800	1	2
	616429	280	225	17,6 - 11	-	350	84	905	475	139	-	312	30,800	1	2
	616431	315	225	17,6 - 11	-	396	80	940	525	150	-	359	43,500	1	2

¹ Available from Q2 / 2024

Areas of Application

The FRIALEN reduced TA red pieces are used for pipe outlets of HD-PE pipelines.

Assembly Instructions

The fusion of the pipe ends with the FRIALEN TA red takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The pipe ends are prepared (removing the oxide layer/cleaning) according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”).

Good reasons for using the FRIALEN TA red:
