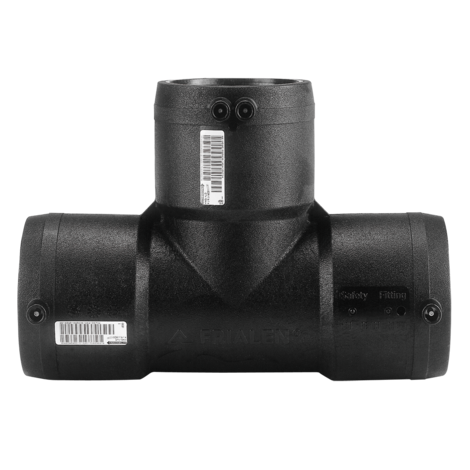

T-piece, SDR 11
T-piece T SDR 11
- Gas, water and H2
- Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
- Material: PE 100
- Safety technology
- DVGW test mark: DV-8606AU2249 and DV-8611AU2250
- FM Approvals Class: 1613 (d 75 - d 315)
PE 100 SDR 11
Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

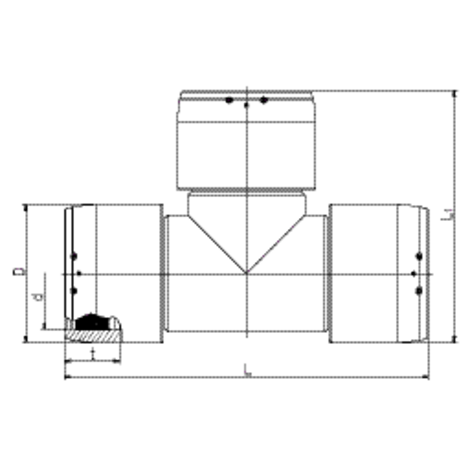

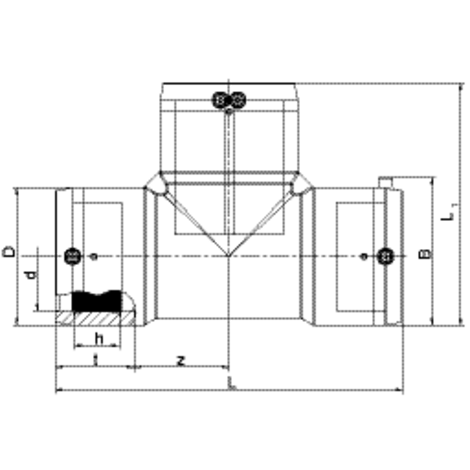

Reference | d | SDR range | B | D | h | L | L1 | t | z | Weight kg | BX | PU |
---|---|---|---|---|---|---|---|---|---|---|---|---|
612165 | 75 | 17,6 - 11 | 111 | 96 | 37 | 278 | 187 | 62 | 69 | 0,980 | 8 | 144 |
612166 | 90 | 17,6 - 11 | 129 | 117 | 44 | 305 | 211 | 71 | 74 | 1,660 | 10 | 80 |
612167 | 110 | 17,6 - 11 | 152 | 142 | 48 | 355 | 248 | 79 | 91 | 2,590 | 6 | 48 |
612168 | 125 | 17,6 - 11 | 168 | 160 | 44 | 384 | 272 | 79 | 105 | 3,500 | 5 | 40 |
615277 | 160 | 17,6 - 11 | 206 | 200 | 41 | 430 | 315 | 88 | 119 | 5,820 | 3 | 24 |
615691 | 180 | 17,6 - 11 | 234 | 228 | 62 | 480 | 354 | 95 | 137 | 7,840 | 2 | 16 |
616266 | 200 | 17,6 - 11 | 255 | 251 | 54 | 550 | 400 | 109 | 160 | 11,130 | 1 | 8 |
615692 | 225 | 17,6 - 11 | 286 | 284 | 63 | 580 | 432 | 111 | 172 | 13,910 | 1 | 8 |
616412 | 250 | 17,6 - 11 | - | 310 | 80 | 770 | 540 | 128 | 254 | 28,200 | 1 | 4 |
616413 | 280 | 17,6 - 11 | - | 350 | 84 | 905 | 630 | 139 | 312 | 42,200 | 1 | 2 |
616414 | 315 | 17,6 - 11 | - | 396 | 80 | 940 | 670 | 150 | 359 | 58,100 | 1 | 1 |

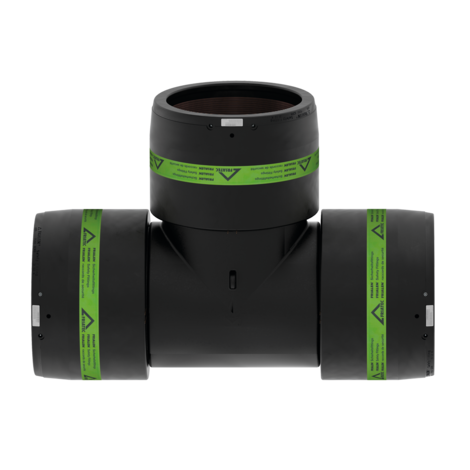

For T d75 - d225 straight pass through, can be fused in one step, therefore only 2 fusions in total. For T > d225 separate fusion zones per socket side.
FRIALEN safety fittings can be fused with pipes with SDR levels 11 to 17.6. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test mark issued: DV-8606AU2249 and DV-8611AU2250.
Areas of Application
The FRIALEN T-pieces are used for equal pipe outlets of HD-PE pipelines.
Assembly Instructions
The fusion of the pipe ends with the FRIALEN T-piece takes place by FRIALEN electrofusion – leakproof and longitudinally strong.
The pipe ends are prepared according to the general installation instructions (see “Assembly Instructions for FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. The FRIALEN-T pieces have a straight passage fusible in one step. Therefore a total of only two fusions are necessary.
Good reasons for using the FRIALEN T-piece:
- Large coupler depth for ease of pipe guiding (no holding clamps required)
- Extra wide fusion zones
- Maximum stability through great wall thickness
- Cold zones at the front side and in the middle of the coupler
- Exposed heating coil for direct heat transmission to the pipe
- Small annular gap for build-up of optimum joining pressure in the fusion zone
- Touch proof electric contacts
- Durable batch marking
- Individually wrapped for dirt protection
- Additional barcode for tracing back the underground fitting (Traceability-Coding)
