SSEBEV/A316 - Easyfit True Union ball and spring check valve DN 65:100
Easyfit spring check valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE). A316 spring.
The Easyfit check valve line developed with Giugiaro Design offers two different versions: SXE with ball shutter and SSE with spring loaded shutter. Easyfit check valves stand out for the innovative installation method that guarantees reliable service over time. This valve is also equipped with a customisable Labelling System.
Main features:
- Customisable Labelling System: built-in LCE module on the valve body made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs
- Optimised dynamic fluid design: energy savings due to the improved valve Kv value and consequent reduced pressure drop
- High surface finish ball shutter: reduced wear, longer working life and reduced valve maintenance. Ideal to convey dirty fluids, even with suspended fluids or filaments, thanks to the special design that permits internal valve selfcleaning
- Locked ball seat carrier: safe dismounting for maintenance with the Easyfit multifunctional handle
- Ideal for horizontal installations: perfect seal even with low back pressure. Silent and durable even with strong vibrations and pulsating fluid
- PVC-U shutter and springs available in STAINLESS Steel 316, A316 PTFE encapsulated: maximum reliability in a wide field of applications from salt water to aggressive acids
EPDM

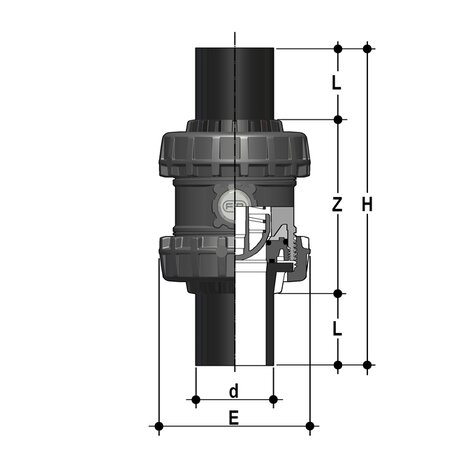

| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| SSEBEV075E | 331 | 189 | 75 | 65 | 2480 |
| SSEBEV090E | 367 | 191 | 90 | 80 | 3090 |
| SSEBEV110E | 407 | 223 | 110 | 100 | 5370 |
FKM
| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| SSEBEV075F | 331 | 189 | 75 | 65 | 2480 |
| SSEBEV090F | 367 | 191 | 90 | 80 | 3090 |
| SSEBEV110F | 407 | 223 | 110 | 100 | 5370 |
- Connection system for solvent weld and threaded joints
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- PN16 True Union valve body made for PVC-U injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
- Easy radial dismounting and fully interchangeable with VEE and VXE 65-100 valve models
- Union nut profile that perfectly adapts to the Easyfit multifunctional handle hooked insert (available as an accessory) that lets you control union nut rotation
- Vertical (preferable for SXE model) and horizontal installation potential
