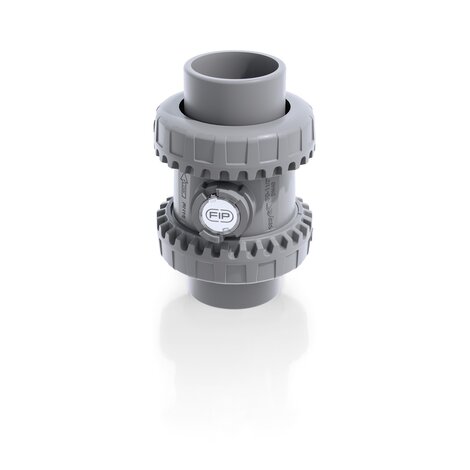

SSEAC/PTFE - Easyfit True Union spring check valve DN 10:50

Easyfit spring check valve with female ends for solvent welding, ASTM series. Spring in A316, PTFE coated.

The SSE Easyfit check valve with spring loaded shutter developed with Giugiaro Design stands out for the innovative installation method that guarantees reliable service over time. This valve is also equipped with a customising Labelling System.

Main features:

Customisable Labelling System: built-in LCE module on the valve body made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs.
Ideal for horizontal installations: perfect seal even with low back pressure. Silent and durable even with strong vibrations and pulsating fluid
PVC-C shutter and springs available made of STAINLESS steel 316, Hastelloy C276, A316 PTFE encapsulated: maximum reliability in a wide field of applications from salt water to aggressive acids

Go back

EPDM

Reference	H	Z	d	DN	g
SSEAC114E0P	136	72	1” 1/4	32	505
SSEAC112E0P	147	77	1” 1/2	40	686
SSEAC200E0P	174	97,6	2”	50	1119

FKM

Reference	H	Z	d	DN	g
SSEAC114F0P	136	72	1” 1/4	32	505
SSEAC112F0P	147	77	1” 1/2	40	686
SSEAC200F0P	174	97,6	2”	50	1119

Connection system for solvent weld and threaded joints
Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
PN16 True Union valve body made for PVC-C injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
Short face to face dimension according to international regulation ISO 7508 series III ”short” and fully interchangeable with VXE DN 10÷50 ball valve models
Union nuts with rack for tightening adjustment via Easyfit handle or via Easytorque adjustment kit (available as accessories)
Can be installed in either a vertical or horizontal position
