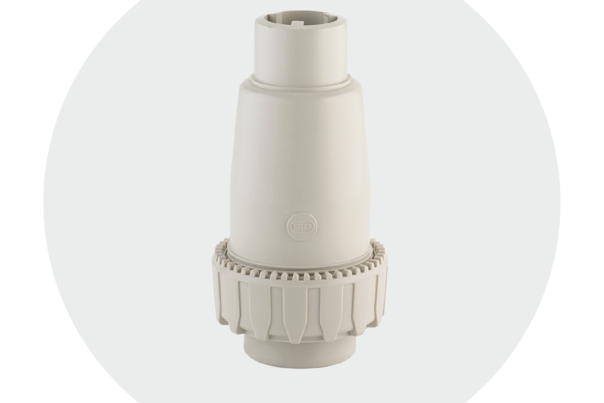

SRIM - Ball check valve DN 15:50
Ball check valve with ends for socket welding, metric series.
The SR check valve allows the passage of fluid in a single direction.
| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| SRIM020F | 105 | 89 | 20 | 15 | 75 |
| SRIM025F | 126 | 107 | 25 | 20 | 140 |
| SRIM032F | 148 | 126 | 32 | 25 | 215 |
| SRIM040F | 172 | 146 | 40 | 32 | 320 |
| SRIM050F | 189 | 158 | 50 | 40 | 440 |
| SRIM063F | 224 | 186 | 63 | 50 | 750 |
- Connection system for weld joints
- PN10 valve body made for PP-H injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
- The valve can only be used with fluids with specific weight under 1,20 g/cm3
- Sealing system with antiblow out design
- Ball entirely in talc-filled PP
- Can be maintained with the valve body installed
- Can be installed in either a vertical (preferable) or horizontal position
