SIV
Solvent weld fittings - equal socket.

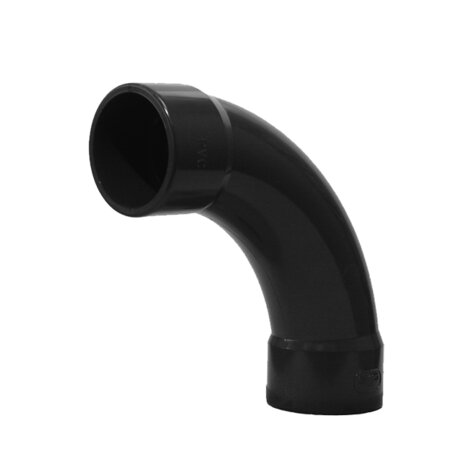

90° long radius bend (R=2d) with solvent weld sockets.
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.

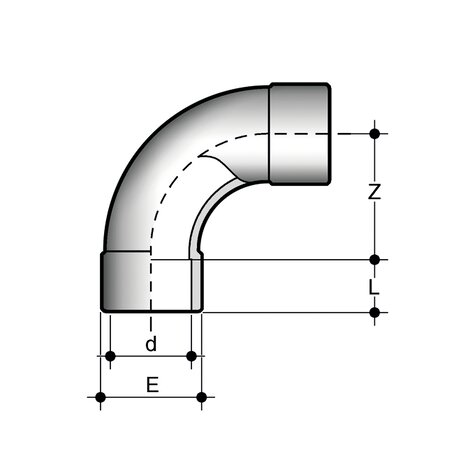

| Reference | Z | d | g |
|---|---|---|---|
| SIV020 | 40,5 | 20 | 35 |
| SIV025 | 50 | 25 | 55 |
| SIV032 | 65,5 | 32 | 100 |
| SIV040 | 80,5 | 40 | 175 |
| SIV050 | 100,5 | 50 | 280 |
| SIV063 | 127 | 63 | 515 |
| SIV075 | 150 | 75 | 1000 |
| SIV090 | 180 | 90 | 1770 |
| SIV110 | 220 | 110 | 2800 |
| SIV160 | 207 | 160 | 5020 |
I: IIP 122 H: KIWA K5034 ND 10
