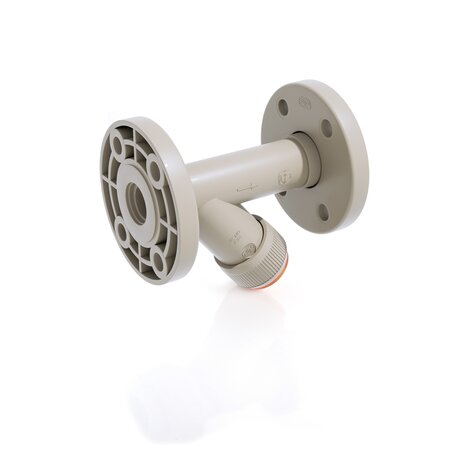

RVUOM - Sediment strainer DN 15:100

Sediment strainer with female union ends and fixed flanges, drilled EN/ISO/DIN PN10/16.

The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
Go back
Raccoglitore di impurità RVUOM DN 15:100 in PP-H
Disegno tecnico RVUOM-RVUOAM DN 15:100 in PP-H
Raccoglitore di impurità RVUOM DN 15:100 in PP-H
Disegno tecnico RVUOM-RVUOAM DN 15:100 in PP-H

EPDM

Reference H d DN g
RVUOM020E 163 20 15 248
RVUOM025E 193 25 20 295
RVUOM032E 211 32 25 397
RVUOM040E 244 40 32 625
RVUOM050E 277 50 40 825
RVUOM063E 331 63 50 1250

FKM

Reference H d DN g
RVUOM020F 163 20 15 248
RVUOM025F 193 25 20 295
RVUOM032F 211 32 25 397
RVUOM040F 244 40 32 625
RVUOM050F 277 50 40 825
RVUOM063F 331 63 50 1250
  • Connection system for weld, threaded and flanged joints
  • Strainer assembled on an easily removed support that facilitates cleaning or replacement
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed

Downloads

RV Technical Catalogue
en get_app
2.3 MB, PDF
RV Technical Catalogue
