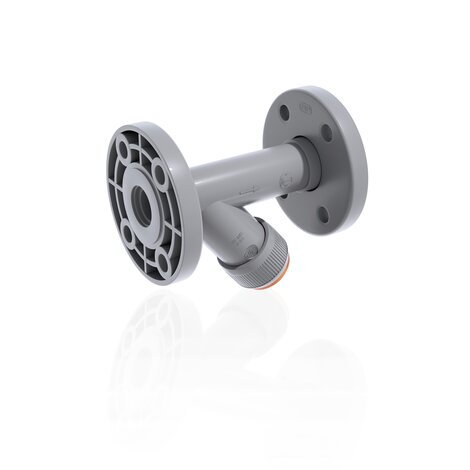

RVUOC - Sediment strainer DN 15:50
Sediment strainer with fixed flanges, drilled EN/ISO/DIN PN10/16.
The RV sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Reference | H | d | DN | g |
|---|---|---|---|---|
| RVUOC020E | 163 | 20 | 15 | 360 |
| RVUOC025E | 193 | 25 | 20 | 495 |
| RVUOC032E | 211 | 32 | 25 | 660 |
| RVUOC040E | 244 | 40 | 32 | 1000 |
| RVUOC050E | 277 | 50 | 40 | 1320 |
| RVUOC063E | 331 | 63 | 50 | 1910 |
FKM
| Reference | H | d | DN | g |
|---|---|---|---|---|
| RVUOC020F | 163 | 20 | 15 | 360 |
| RVUOC025F | 193 | 25 | 20 | 495 |
| RVUOC032F | 211 | 32 | 25 | 660 |
| RVUOC040F | 244 | 40 | 32 | 1000 |
| RVUOC050F | 277 | 50 | 40 | 1320 |
| RVUOC063F | 331 | 63 | 50 | 1910 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
