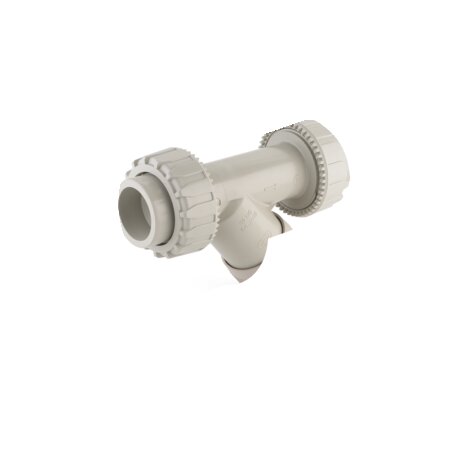

RVUOAM - Sediment strainer DN 15:100
Sediment strainer with female union ends and fixed flanges, drilled ANSI B16.5 cl.150 #FF.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

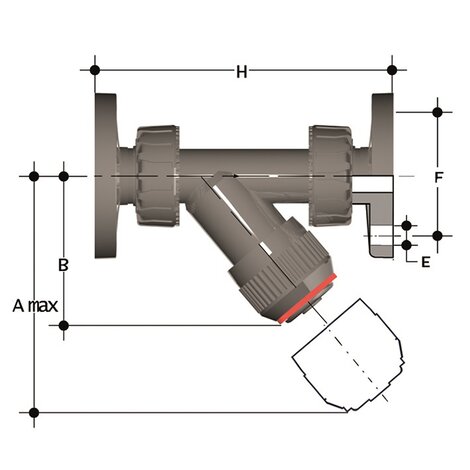

Reference | H |
---|---|
RVUOAM012E | 175 |
RVUOAM034E | 214 |
RVUOAM100E | 237 |
RVUOAM114E | 253 |
RVUOAM112E | 289 |
RVUOAM200E | 333 |
FKM
Reference | H |
---|---|
RVUOAM012F | 175 |
RVUOAM034F | 214 |
RVUOAM100F | 237 |
RVUOAM114F | 253 |
RVUOAM112F | 289 |
RVUOAM200F | 333 |
- Connection system for weld, threaded and flanged joints
- Strainer assembled on an easily removed support that facilitates cleaning or replacement
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
