RVUNC - Sediment strainer DN 15:50

Sediment strainer with NPT threaded female union ends.

The RV sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.

Go back

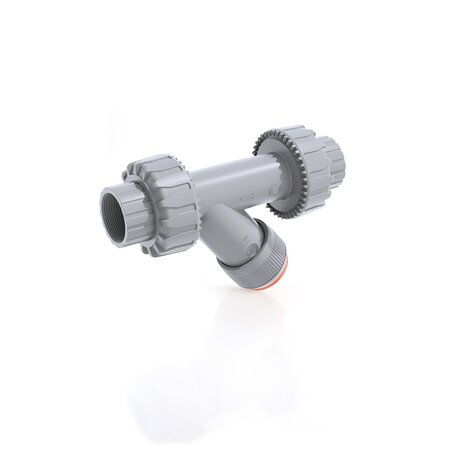

Render del raccoglitore di impurità RVUNC - DN 15:50 in PVC-C
Disegno tecnico RVUFM DN 15:100 in PP-H
Render del raccoglitore di impurità RVUNC - DN 15:50 in PVC-C
Disegno tecnico RVUFM DN 15:100 in PP-H

EPDM

Reference H Z DN g
RVUNC012E 143 107,4 15 231
RVUNC034E 159 123 20 392
RVUNC100E 183 137,8 25 576
RVUNC114E 214 163,8 32 812
RVUNC112E 235 185,6 40 1211
RVUNC200E 285 275,8 50 2051

FKM

Reference H Z DN g
RVUNC012F 143 107,4 15 231
RVUNC034F 159 123 20 392
RVUNC100F 183 137,8 25 576
RVUNC114F 214 163,8 32 812
RVUNC112F 235 185,6 40 1211
RVUNC200F 285 225,8 50 2051
  • Connection system for solvent weld, threaded and flanged joints
  • Strainer mounted on an easily removed support that facilitates the cleaning or replacement
  • Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed

Downloads

RV Technical Catalogue
en get_app
306.3 KB, PDF
RV Technical Catalogue
