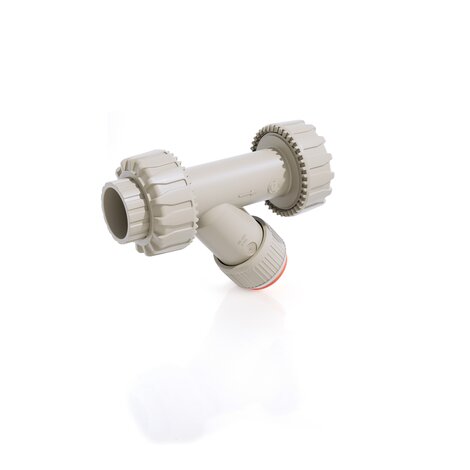

RVUIM - Sediment strainer DN 15:100
Sediment strainer with female union ends for socket welding, metric series.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

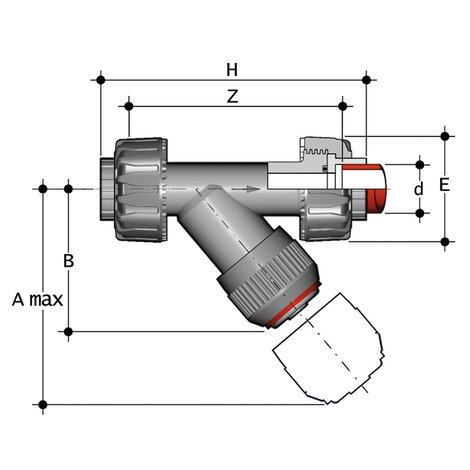

| Reference | H | Z |
|---|---|---|
| RVUIM020E | 138 | 109 |
| RVUIM025E | 157 | 125 |
| RVUIM032E | 179 | 143 |
| RVUIM040E | 205 | 164 |
| RVUIM050E | 244 | 197 |
| RVUIM063E | 294 | 239 |
FKM
| Reference | H | Z |
|---|---|---|
| RVUIM020F | 138 | 109 |
| RVUIM025F | 157 | 125 |
| RVUIM032F | 179 | 143 |
| RVUIM040F | 205 | 164 |
| RVUIM050F | 244 | 197 |
| RVUIM063F | 294 | 239 |
- Connection system for weld, threaded and flanged joints
- Strainer assembled on an easily removed support that facilitates cleaning or replacement
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
