RVUAT - Sediment strainer DN 10:100
PVC-U transparent.
Sediment strainer with female union ends for solvent welding, series ASTM.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.

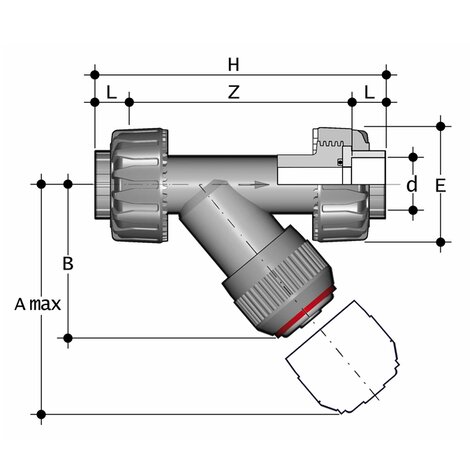

| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| RVUAT038E | 149 | 110 | 3/8” | 10 | 203 |
| RVUAT012E | 149 | 104 | 1/2” | 15 | 211 |
| RVUAT034E | 172 | 121 | 3/4” | 20 | 358 |
| RVUAT100E | 190 | 132,6 | 1” | 25 | 526 |
| RVUAT114E | 223 | 159 | 1” 1/4 | 32 | 733 |
| RVUAT112E | 251 | 181 | 1” 1/2 | 40 | 1095 |
| RVUAT200E | 298 | 221,6 | 2” | 50 | 1843 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
