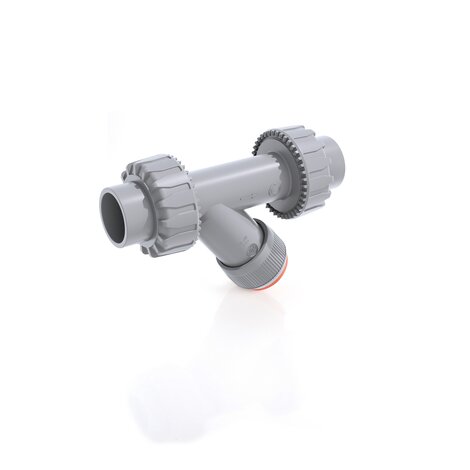

RVUAC - Sediment strainer DN 15:50
Sediment strainer with female union ends for solvent welding, ASTM series.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| RVUAC012E | 149 | 104 | 1/2” | 15 | 231 |
| RVUAC034E | 172 | 121 | 3/4” | 20 | 392 |
| RVUAC100E | 190 | 132,6 | 1” | 25 | 576 |
| RVUAC114E | 223 | 159 | 1” 1/4 | 32 | 802 |
| RVUAC112E | 251 | 181 | 1” 1/2 | 40 | 1199 |
| RVUAC200E | 298 | 221,6 | 2” | 50 | 2018 |
FKM
| Reference | H | Z | d | DN | g |
|---|---|---|---|---|---|
| RVUAC012F | 149 | 104 | 1/2” | 15 | 231 |
| RVUAC034F | 172 | 121 | 3/4” | 20 | 392 |
| RVUAC100F | 190 | 132,6 | 1” | 25 | 576 |
| RVUAC114F | 223 | 159 | 1” 1/4 | 32 | 802 |
| RVUAC112F | 251 | 181 | 1” 1/2 | 40 | 1199 |
| RVUAC200F | 298 | 221,6 | 2” | 50 | 2018 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
