RVOV-RVOT D 20 ÷ 63 - Sediment strainer DN 10:100
RVOV PVC-U rigid - RVOT PVC-U transparent.
Sediment strainer with fixed flanges, drilled PN10/16.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

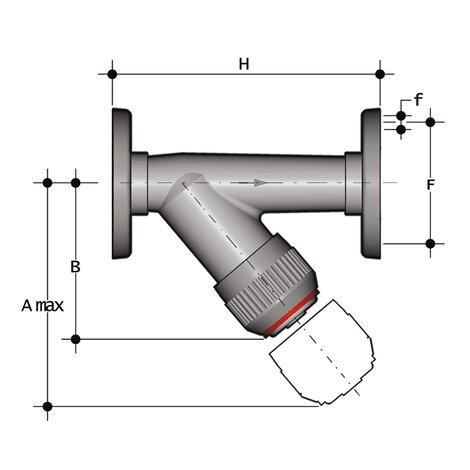

| Reference | H |
|---|---|
| RVOV020E | 130 |
| RVOT050E | 200 |
| RVOT040E | 180 |
| RVOT032E | 160 |
| RVOT025E | 150 |
| RVOT020E | 130 |
| RVOV063E | 230 |
| RVOV050E | 200 |
| RVOV040E | 180 |
| RVOV032E | 160 |
| RVOV025E | 150 |
| RVOT063E | 230 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
