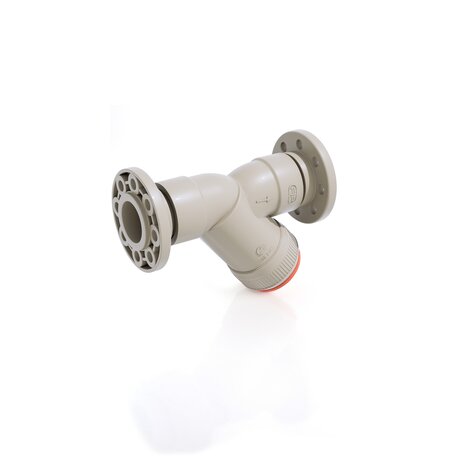

RVOM - Sediment strainer DN 15:100
Sediment strainer with steel core backing ring , PP/FRP coated, drilled EN/ISO/DIN PN10/16.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Reference | H | d | DN | g |
|---|---|---|---|---|
| RVOM075E | 356 | 75 | 65 | 5120 |
| RVOM090E | 404 | 90 | 80 | 6020 |
| RVOM110E | 475 | 110 | 100 | 7965 |
FKM
| Reference | H | d | DN | g |
|---|---|---|---|---|
| RVOM075F | 356 | 75 | 65 | 5120 |
| RVOM090F | 404 | 90 | 80 | 6020 |
| RVOM110F | 475 | 110 | 100 | 7925 |
- Connection system for weld, threaded and flanged joints
- Strainer assembled on an easily removed support that facilitates cleaning or replacement
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
