RVIV-RVIT - Sediment strainer DN 10:100
RVIV PVC-U rigid - RVIT PVC-U transparent.
Sediment strainer with female ends for solvent welding.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

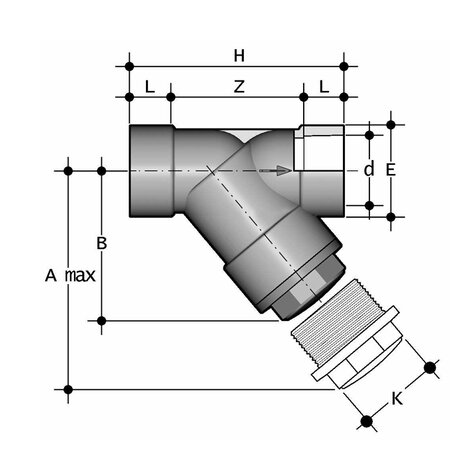

| Reference | H | K | Z | d | DN | K | g |
|---|---|---|---|---|---|---|---|
| RVIV075E | 243 | 96 | 155 | 75 | 65 | 96 | 2385 |
| RVIV090E | 262 | 105 | 160 | 90 | 80 | 105 | 2975 |
| RVIV110E | 325 | - | 203 | 110 | 100 | - | 4610 |
| RVIT075E | 243 | 96 | 155 | 75 | 65 | 96 | 2385 |
| RVIT090E | 262 | 105 | 160 | 90 | 80 | 105 | 2975 |
| RVIT110E | 325 | - | 203 | 110 | 100 | - | 4610 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
