RVDV-RVDT - Sediment strainer DN 10:100
RVDV PVC-U rigid - RVDT PVC-U transparent.
Sediment strainer with male ends for solvent welding.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

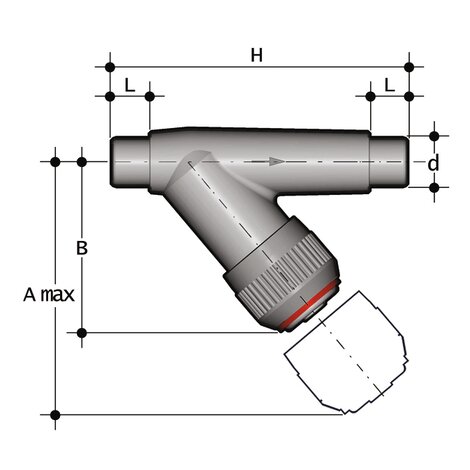

| Reference | H | d | DN | g |
|---|---|---|---|---|
| RVDV016E | 114 | 16 | 10 | 110 |
| RVDT050E | 194 | 50 | 40 | 600 |
| RVDT040E | 174 | 40 | 32 | 400 |
| RVDT032E | 154 | 32 | 25 | 285 |
| RVDT025E | 144 | 25 | 20 | 190 |
| RVDT020E | 124 | 20 | 15 | 120 |
| RVDT016E | 114 | 16 | 10 | 110 |
| RVDV063E | 224 | 63 | 50 | 945 |
| RVDV050E | 194 | 50 | 40 | 600 |
| RVDV040E | 174 | 40 | 32 | 400 |
| RVDV032E | 154 | 32 | 25 | 285 |
| RVDV025E | 144 | 25 | 20 | 190 |
| RVDV020E | 124 | 20 | 15 | 120 |
| RVDT063E | 224 | 63 | 50 | 945 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
