RIV
Solvent weld fittings - reducers.

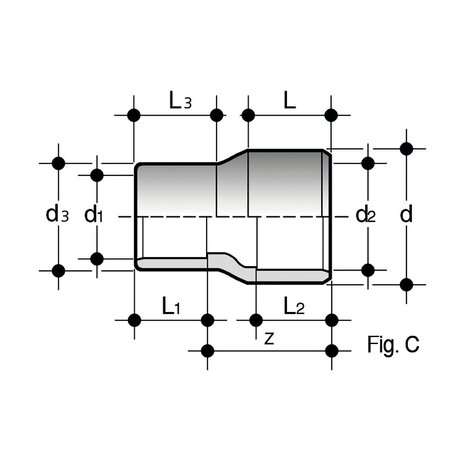

Reducer: solvent weld spigot (d) or solvent weld socket (d2), solvent weld socket (d1 reduced) or solvent weld spigot (d3 reduced) (Fig.C)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Reference | Z | g |
|---|---|---|
| RIV090075050040 | 74 | 180 |
| RIV090075063050 | 74 | 200 |
| RIV090075075063 | 74 | 260 |
| RIV090075090075 | 74 | 325 |
I: IIP 122 F: AFNOR NF04
RIV: the quality marks refer to dimensions d and d1
