RIF

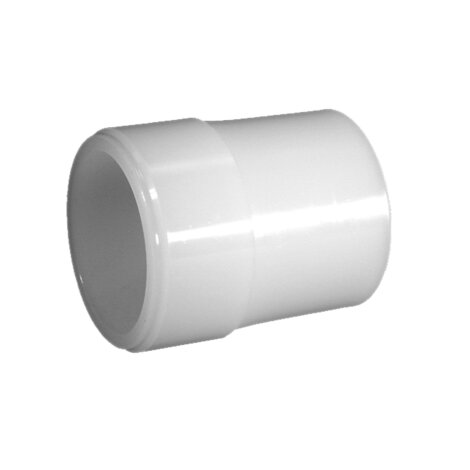

Adaptor for socket welding - reducers.
Reducer: spigot (d), reduced socket for socket welding (d1).
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Reference | H | Z | g |
|---|---|---|---|
| RIF020016 | 35 | 22 | 11 |
| RIF025020 | 40 | 26 | 15 |
| RIF032025 | 46 | 30 | 28 |
| RIF040025 | 51 | 35 | 40 |
| RIF040032 | 54 | 36 | 47 |
| RIF050032 | 59 | 41 | 55 |
| RIF050040 | 63 | 43 | 70 |
| RIF063032 | 67 | 49 | 100 |
| RIF063050 | 76 | 53 | 130 |
| RIF075063 | 89 | 61 | 220 |
| RIF090063 | 97 | 70 | 280 |
| RIF090075 | 104 | 73 | 335 |
| RIF110090 | 121 | 85 | 520 |
