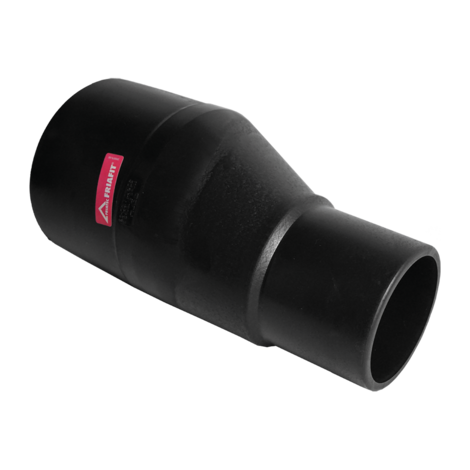

Reducer off-center (spigot fitting)
Reducer off-center, SDR 17 (spigot fitting) RES
- HD-PE fitting for processing without holding devices with FRIAFIT couplers AM
Note:
Other dimensions on request.
PE 100
Maximum permissible test pressure 0.5 bar according to DIN EN 1610
| Reference | d1 | d2 | s1 | product.detail.attribute.s1_klein | s2 | t | t1 | Weight [kg] | BX |
|---|---|---|---|---|---|---|---|---|---|
| 681018 | 110 | 125 | 6,6 | 6,6 | 7,4 | 85 | 85 | 1,000 | 1 |
| 681801 | 110 | 160 | 6,6 | 6,6 | 9,5 | 90 | 95 | 1,200 | 1 |
| 681802 | 160 | 225 | 9,5 | 9,5 | 13,4 | 100 | 150 | 2,530 | 1 |
| 681804 | 200 | 225 | 11,9 | 11,9 | 12,8 | 100 | 250 | 4,100 | 1 |
| 681810 | 225 | 280 | 13,4 | 13,4 | 16,6 | 150 | 250 | 5,460 | 1 |
Downloads
get_app
get_app
Assembly instruction
