REBE SDR17 - Eccentric reducer
Eccentric reducer, short spigot, for butt welding SDR 17 - S 8.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

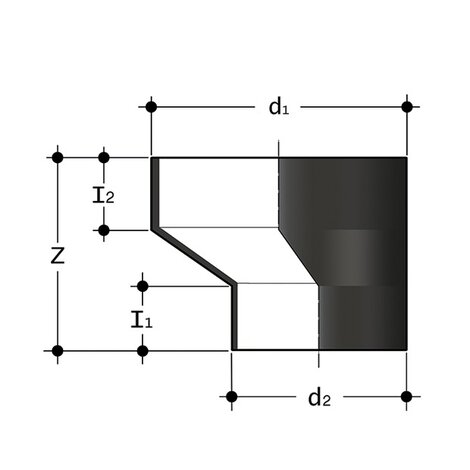

| Reference | Z | d2 | g |
|---|---|---|---|
| REBE17160090 | 140 | 90 | 700 |
| REBE17160110 | 120 | 110 | 500 |
| REBE17160125 | 110 | 125 | 400 |
| REBE17160140 | 100 | 140 | 340 |
| REBE17180110 | 140 | 110 | 1100 |
| REBE17180125 | 130 | 125 | 700 |
| REBE17180140 | 120 | 140 | 560 |
| REBE17180160 | 100 | 160 | 320 |
| REBE17200140 | 130 | 140 | 900 |
| REBE17200160 | 120 | 160 | 660 |
| REBE17200180 | 100 | 180 | 540 |
| REBE17225160 | 140 | 160 | 1200 |
| REBE17225180 | 120 | 180 | 900 |
| REBE17225200 | 100 | 200 | 700 |
| REBE17250160 | 160 | 160 | 2400 |
| REBE17250180 | 140 | 180 | 1400 |
| REBE17250200 | 133 | 200 | 1100 |
| REBE17250225 | 100 | 225 | 800 |
| REBE17280200 | 160 | 200 | 2500 |
| REBE17280225 | 130 | 225 | 2050 |
| REBE17280250 | 110 | 250 | 1700 |
| REBE17315225 | 160 | 225 | 3800 |
| REBE17315250 | 140 | 250 | 2100 |
| REBE17315280 | 120 | 280 | 1400 |
* resale products
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
