REBE SDR 11 - Eccentric reducer
Eccentric reducer, short spigot, for butt welding SDR 11 - S 5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

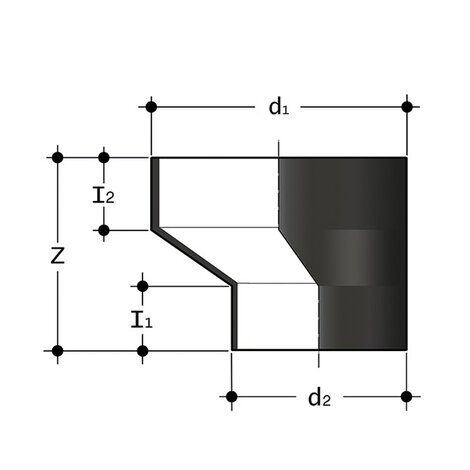

| Reference | Z |
|---|---|
| REBE11160090 | 140 |
| REBE11160110 | 120 |
| REBE11160125 | 110 |
| REBE11160140 | 100 |
| REBE11180125 | 130 |
| REBE11180140 | 120 |
| REBE11180160 | 100 |
| REBE11200125 | 150 |
| REBE11200140 | 130 |
| REBE11200160 | 120 |
| REBE11200180 | 100 |
| REBE11225160 | 140 |
| REBE11225180 | 120 |
| REBE11225200 | 110 |
| REBE11250160 | 170 |
| REBE11250180 | 150 |
| REBE11250200 | 130 |
| REBE11250225 | 110 |
| REBE11280180 | 180 |
| REBE11280200 | 160 |
| REBE11280225 | 140 |
| REBE11280250 | 120 |
| REBE11315200 | 190 |
| REBE11315225 | 170 |
| REBE11315250 | 150 |
| REBE11315280 | 130 |
* resale products
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
