Solvent weld fittings - stubs.

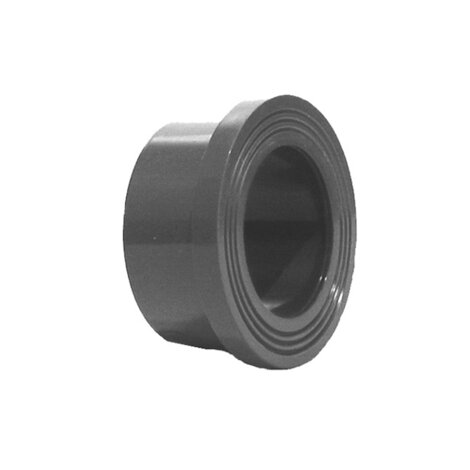

Stub with serrated face according to DIN 8063 PN 10/16 with solvent weld socket, for use with flat gasket (for gasket sizes, see QHV).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | Z | Sp | d | DN | g |
|---|---|---|---|---|---|
| QRC020 | 3.5 | 7 | 20 | 15 | 11 |
| QRC025 | 3 | 7 | 25 | 20 | 17 |
| QRC032 | 3 | 7 | 32 | 25 | 27 |
| QRC040 | 3 | 8 | 40 | 32 | 43 |
| QRC050 | 3 | 8 | 50 | 40 | 66 |
| QRC063 | 3 | 9 | 63 | 50 | 116 |
| QRC075 | 3 | 10 | 75 | 65 | 175 |
| QRC090 | 5 | 10 | 90 | 80 | 305 |
| QRC110 | 4 | 12 | 110 | 100 | 490 |
| QRC160 | 4,5 | 16 | 160 | 150 | 1240 |
| QRC225 | 5,5 | 25 | 225 | 200 | 1750 |
