QBAM PN10 SDR 11 - S 5 - Stub
Short spigot stub for butt welding for backing rings ANSI B16.5 cl.150 OAB* PN10 SDR 11 - S 5.
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

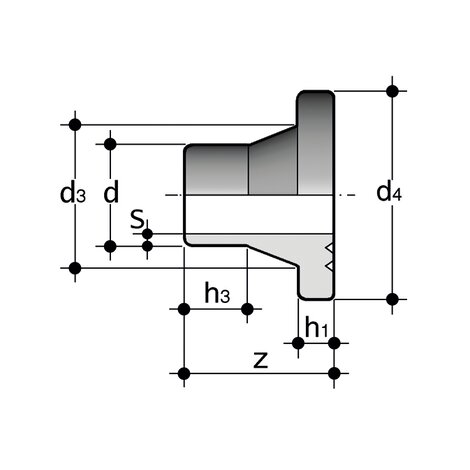

| Reference | Z | d | g |
|---|---|---|---|
| QBAM11034 | 50 | 25 | 30 |
| QBAM11100 | 50 | 32 | 45 |
| QBAM11114 | 50 | 40 | 66 |
| QBAM11112 | 50 | 50 | 87 |
| QBAM11300 | 80 | 90 | 322 |
for other dimensions use QBM
