PH870CDTCXX
Ryton body flat surface electrode
Ryton double junction flat surface pH electrode with Pt1000
The new pH electrodes line
870 combines a tough ryton
body with auto-cleaning flat
pH surface and with a reliable
Pt1000 for an accurate
measurement in dirty liquid as
well as in aggressive solutions.
In addiction a wide junction
improves performances in
presence of suspended solids.
The new 870 electrodes allow
a direct installation by their
¾” threaded included in the
body: in-line installation using
the threads on the electrode
bottom or submersible
installation using the threads
on the electrode head.
Availability of specific versions
for special applications as:
horizontal mounting (-HM),
low conductive samples (-LC),
aggressive solutions (HF<2%)/
low values of pH (-HF).
| Reference |
|---|
| PH870CDTC |
| PH870CDTCHF |
| PH870CDTCHM |
| PH870CDTCLC |
APPLICATIONS:
- Processing and Manufacturing industry
- Chemical processing
- Water treatment processes
- Cooling processes
- Heating processes
MAIN FEATURES:
- Temperature sensor combined
- Flat surface electrodes
- Tough Ryton body
- Double threaded body for in line and submersion installation
- Double junction technology
- HM option for horizontal mounting
- HF option for liquids with HF (max 2%)
- LC option for liquid with a conductivity lower than 100μS/cm

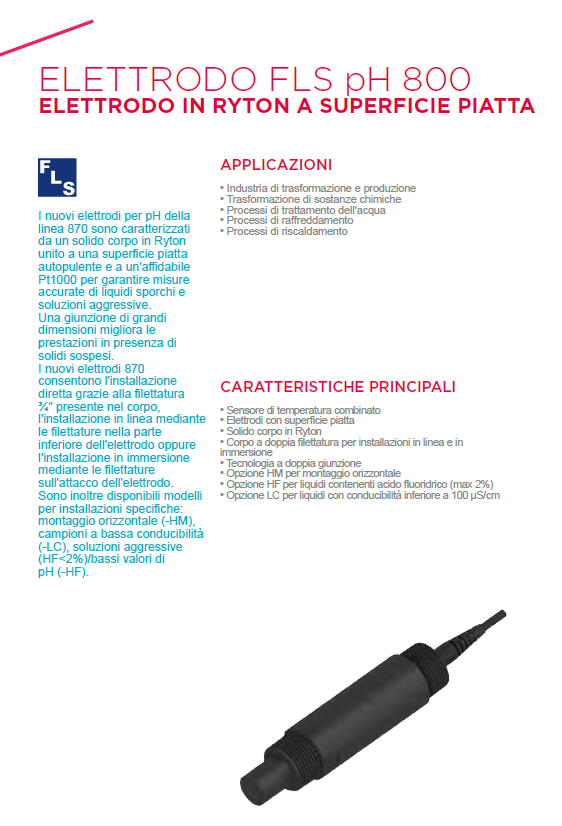

Downloads
