PFV
Threaded fittings.

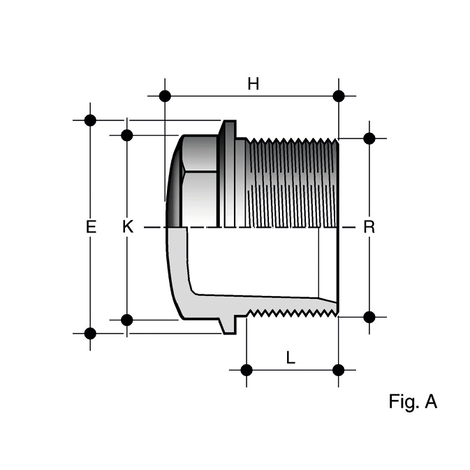

Plug with BSP male thread (Fig. A).
Series of fittings for pipes conveying fluids under pressure with threaded joints.
| Reference | H | K | K | g |
|---|---|---|---|---|
| PFV038 | 22 | 18 | 18 | 4 |
| PFV012 | 26 | 23 | 23 | 8 |
| PFV034 | 30 | 28 | 28 | 11 |
| PFV100 | 34 | 35 | 35 | 21 |
| PFV114 | 38 | 44 | 44 | 30 |
| PFV112 | 40 | 51 | 51 | 46 |
| PFV200 | 47 | 64 | 64 | 74 |
