Plug-in coupler for shaft lining adapter

Plug-in coupler for shaft lining adapter AEM

For the articulated connection of HD-PE pipes into ducts in accordance with DIN 4034 or DWA-A 157 together with the FRIAFIT adapter ASF/ASFL
With two elastomeric sealing rings as hinge for optimum compression
With water-swellable sealing ring Q for additional safety
Connection side to HD-PE pipe with open-wire technology for optimal heat transfer for use without holding devices
Safety technology
Level transition to chamber sole

Note:

Also available with NBR seals (handling of substances hazardous to water according to AwSV, application WHG e.g. grease and coalescence separators): Stock status 3.

Go back

PE 100

Maximum permissible test pressure 0.5 bar to DIN EN 1610

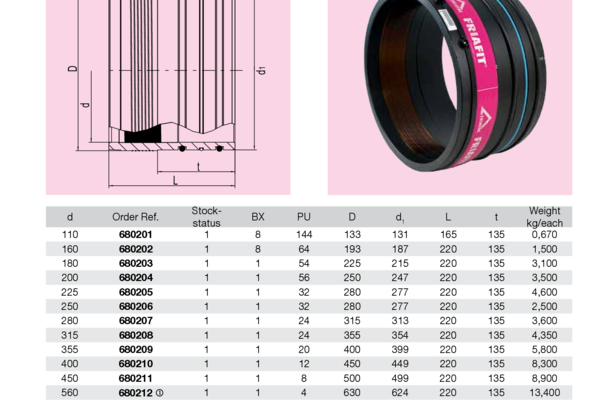

	Reference	d	d₁	D	L	t	Weight kg	BX	PU
	680201	110	131	133	165	135	0,740	8	144
	680202	160	187	193	225	135	1,950	8	64
	680203	180	215	225	220	135	3,100	1	54
	680204	200	247	250	220	135	3,500	1	56
	680205	225	277	280	220	135	4,600	1	32
	680206	250	277	280	220	135	2,500	1	32
	680207	280	313	315	220	135	3,600	1	32
	680208	315	354	355	220	135	4,350	1	24
	680209	355	399	400	220	135	5,800	1	20
	680210	400	449	450	220	135	8,300	1	12
	680211	450	499	500	220	135	8,900	1	8
	680214	500	559	562	220	135	11,050	1	8
¹	680212	560	624	630	220	135	13,400	2	4
¹	680213	630	709	710	270	135	22,400	1	3

¹ with pre-heating technology for optimum gap bridging

Sealing rings made of material SBR

Alternatively: NBR seal (stocked status 3) available on request

Sewage pipe systems are high-value assets of a value which has to be maintained for a long time. Increasing demands on the public sewage system require materials which meet these criteria. HDPE sewage pipes have been fused for many years with the FRIAFIT HDPE sewage system tightly, frictionlocked and root-proof.

Areas of Application

The FRIAFIT-Sewage Insert Sleeve AEM is applied for the connection of HDPE pipes into concrete inspection chambers according to DIN 4034 in connection with FRIAFIT-Sewage Inspection Chamber Adapter ASF/ASFL.

Notes on processing

The AEM is pushed into the ASF Sewage Inspection Chamber Adapter ASF until it connects with the gutter, resp. to the stop (ASFL).

Fusion of pipe ends with FRIAFIT AEM Sewage Insert Sleeve takes place using FRIAFIT fusion – leakproof and longitudinally strong.

The HDPE pipe is prepared according to the general installation requirements (see also “Fitting Instructions” for the FRIAFIT-Sewage System). This involves removing the oxide layer and cleaning the pipe ends. It is then slid into the AEM; length of insertion = L or transition to the gutter (ASFL).

To compensate a larger annular gap (> 1 mm, max. 3 mm) between coupler and pipe, the pre-heating barcode can be used from d 560 (see instructions packed up with the coupler).

Good reasons for using the FRIAFIT-Sewage Insert Sleeve AEM

Jointing part at the inspection chamber in conjunction with FRIAFIT-Inspection Chamber Adapter (ASF/ASFL)

An elastomeric sealing in duplicate allows optimum anchoring to the FRIAFIT-Inspection Chamber Adapter (ASF/ASFL) according to DIN V 4034-1 and ATV-DVWK-A 157
